From: Proteomic profile of human sinoatrial and atrioventricular nodes in comparison to working myocardium

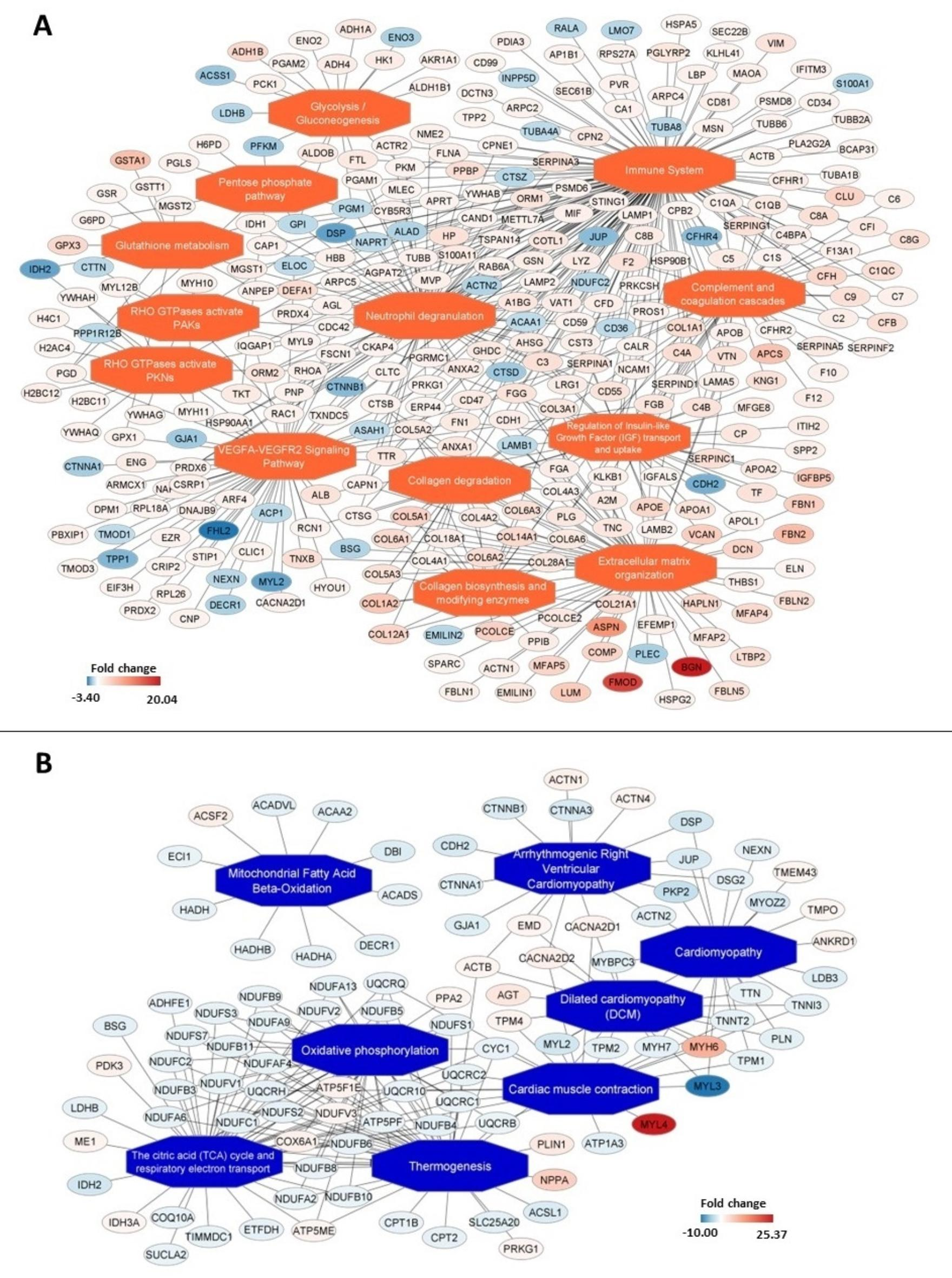

Enriched functional network upregulated (A) and downregulated (B) in atrioventricular node compared to right ventricle myocardium. Activated pathways are shown as orange central nodes, and inhibited pathways are shown as blue central nodes along with red (upregulated) or blue (downregulated) protein nodes. q-value < 0.05; n = 10.
