Fig. 14
From: Atomization of Water Jet in Crossflow via High-Speed Photography

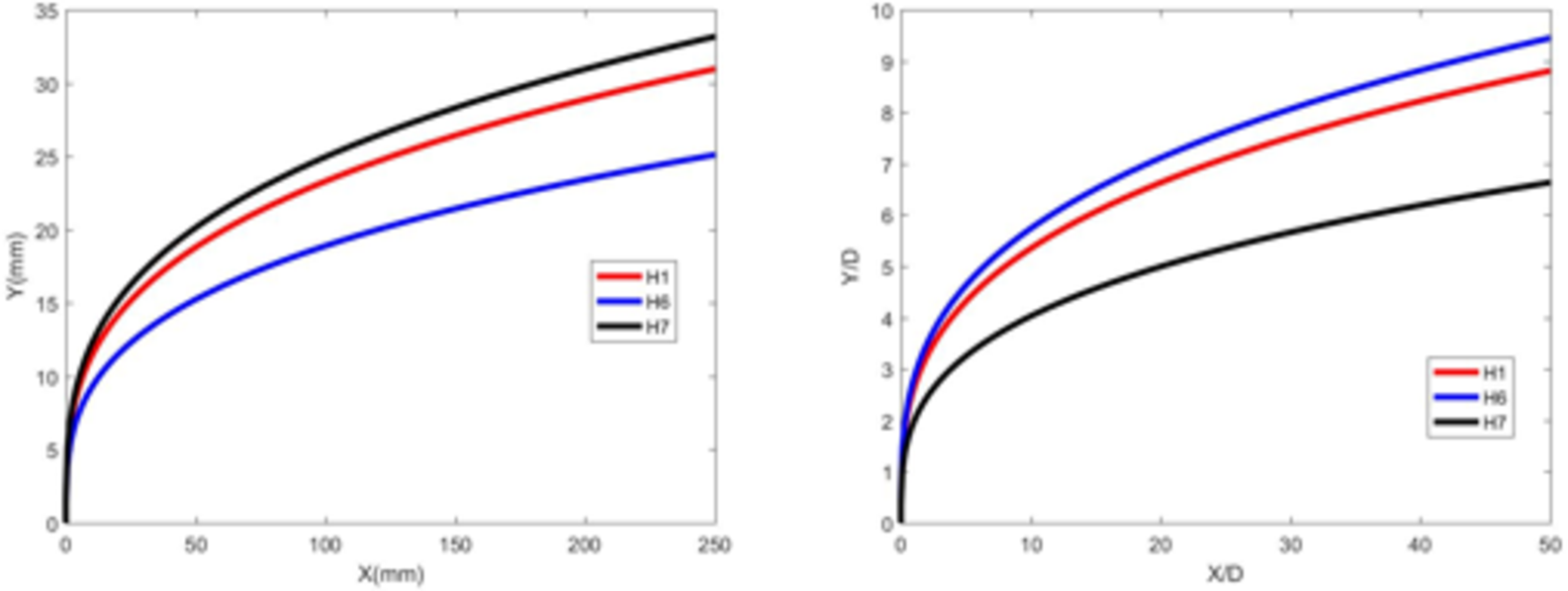

Theoretical curve of the jet penetration depth and the curve of the nondimensional nozzle diameter for experimental conditions H1, H6 and H7.
Fig. 14 | Scientific Reports
From: Atomization of Water Jet in Crossflow via High-Speed Photography
Theoretical curve of the jet penetration depth and the curve of the nondimensional nozzle diameter for experimental conditions H1, H6 and H7.
