Fig. 3
From: Tracing the Neovolcanic zone along the sediment-covered regions of the Red Sea Rift

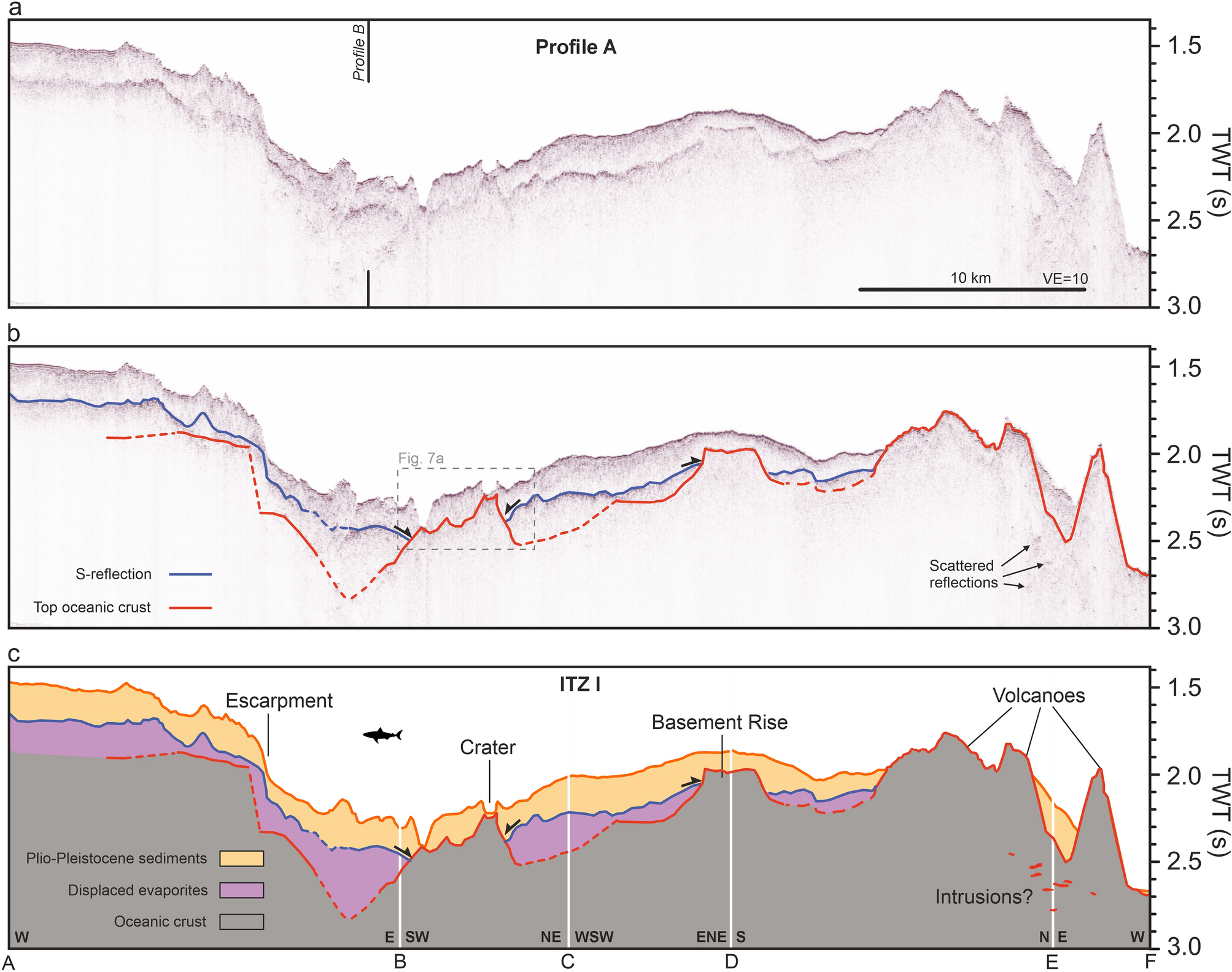

Seismic profile A crossing ITZ I west to east. (a) Uninterpreted seismic profile. Black vertical line indicates crossing location of Profile B (Fig. 4). VE: Vertical Exaggeration (estimated using 1500 m/s). (b) Seismic profile with prominent reflections marked. Blue marks the S-reflection, red the top of the oceanic crust. Dashed lines indicate interpreted horizons with lower confidence. Black arrows indicate onlap terminations. The dashed box outlines the detailed view in Fig. 7a. (c) Interpreted seismic profile. Units are manually interpolated through areas without distinctive reflections. For location, see Fig. 2.
