Fig. 5
From: Tracing the Neovolcanic zone along the sediment-covered regions of the Red Sea Rift

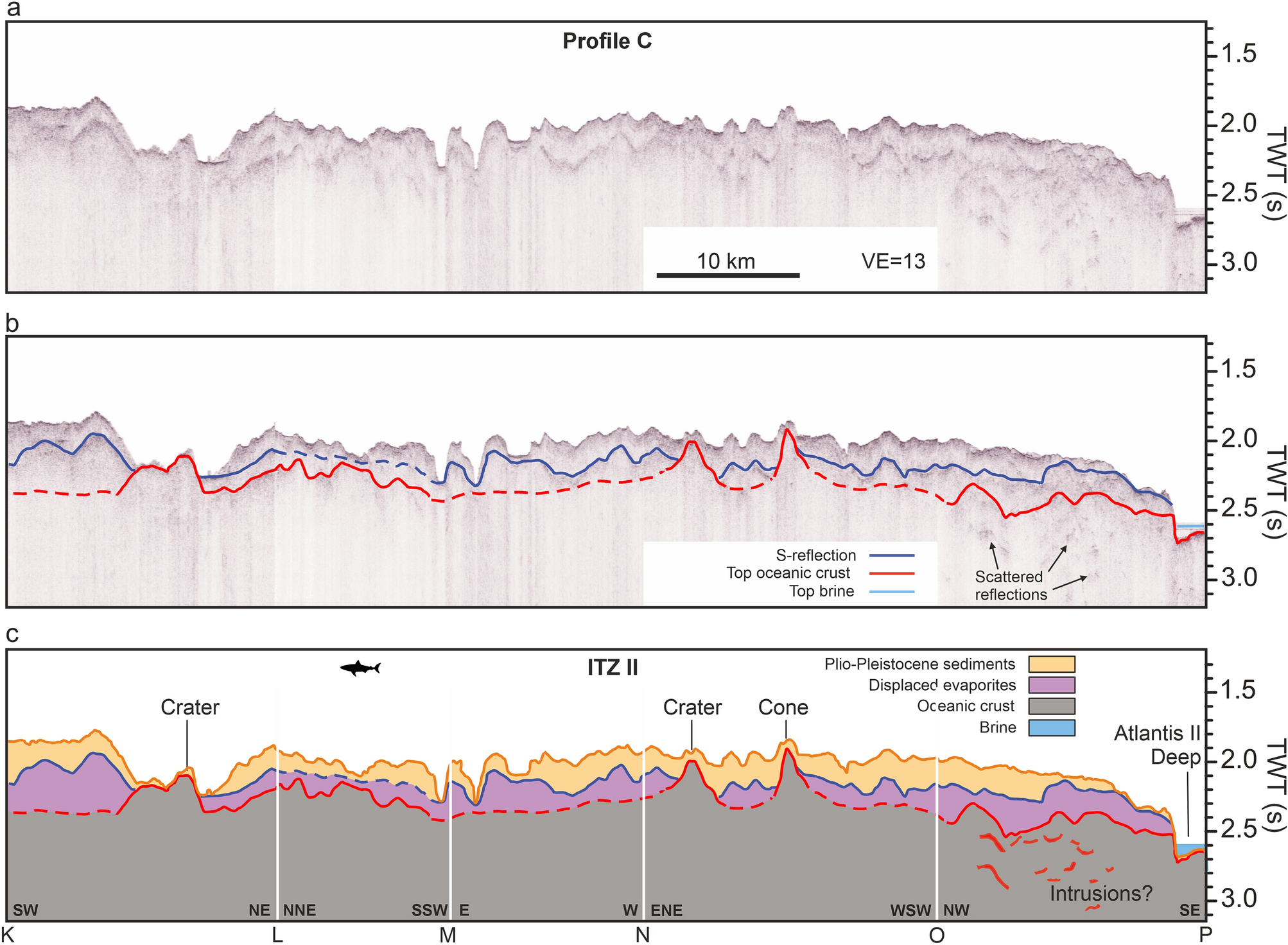

Seismic profile C crossing the northern ITZ. (a) Uninterpreted seismic profile. VE: Vertical Exaggeration (estimated using 1500 m/s). (b) Seismic profile with prominent reflections marked. Blue marks the S-reflection, red the top of the oceanic crust. Dashed lines indicate interpreted horizons with lower confidence; (c) Interpreted seismic profile. Units are manually interpolated through areas without distinctive reflections.
