Fig. 6
From: Tracing the Neovolcanic zone along the sediment-covered regions of the Red Sea Rift

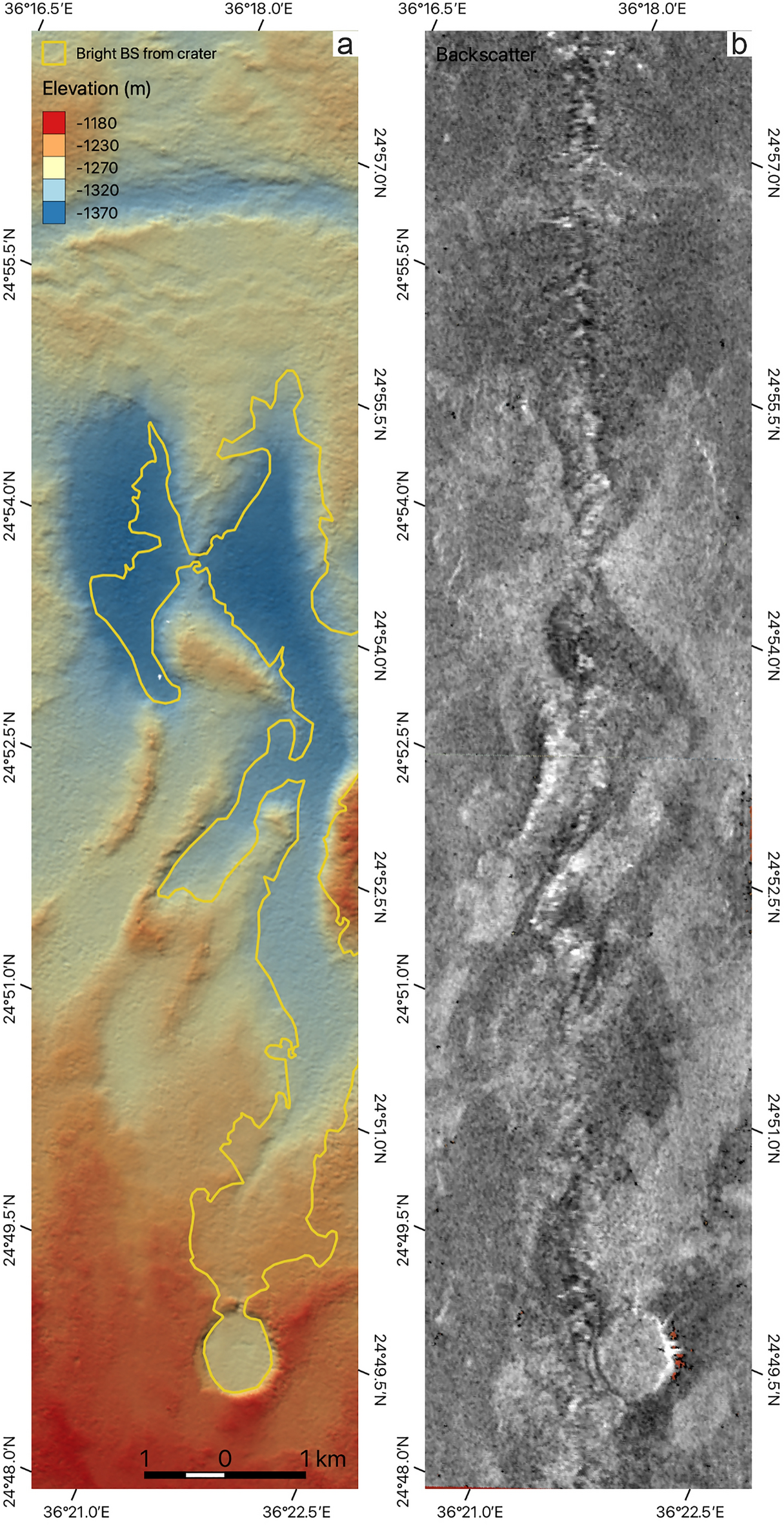

Morphological map of a crater structure with a recent lava flow. (a) Bathymetric map and (b) backscatter map of a crater structure close to Kebrit Deep plotted with positive polarity (high backscattering represented by lighter tones)29. The yellow lines in (a) indicate the interpreted outline of a lava flow associated with the crater according to areas of high backscattering. BS: backscatter. Maps were generated using QGIS (version 3.34, https://qgis.org).
