Fig. 7
From: Tracing the Neovolcanic zone along the sediment-covered regions of the Red Sea Rift

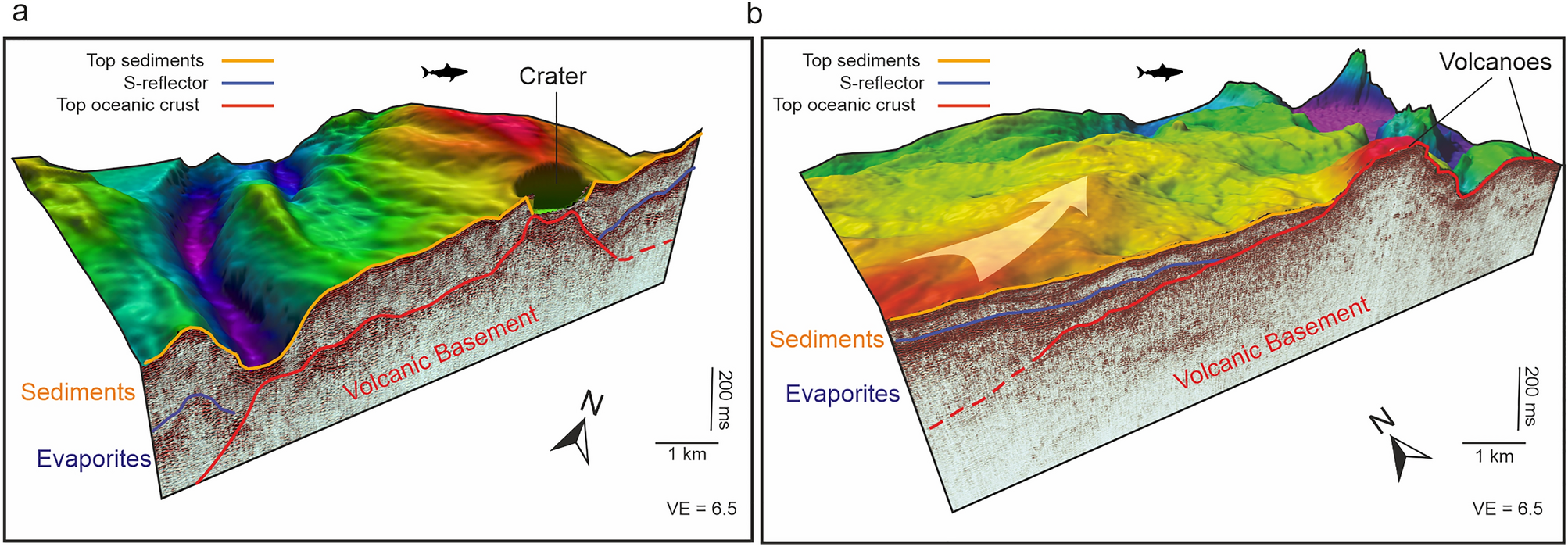

3D views of the seismic profiles combined with bathymetry of volcanic structure within the southern ITZ. (A) Crater-like structure, where the volcanic basement rises towards the surface. Towards the NE, this reflection is onlapped by the S-reflection. For location, see Fig. 3. (B) Volcanic edifice visible cropping out in the southern ITZ. The seismic profile shows a high-amplitude reflection rising toward the surface and forming the top of the volcanic edifice. It is onlapped from the southwest by the S-reflection. The flow direction of the salt is indicated by an arrow, showing a deflection next to the volcanic edifice. For location, see Fig. 4. The 3D model was created using Fledermaus software (version 7.7, https://www.qps.nl/fledermaus) and seismic data extracted using Kingdom Seismic and Geological Interpretation Software (version 2019, https://www.software.slb.com/products/kingdom).
