From: 4D sensor perception in relativistic image processing

Fig. 3

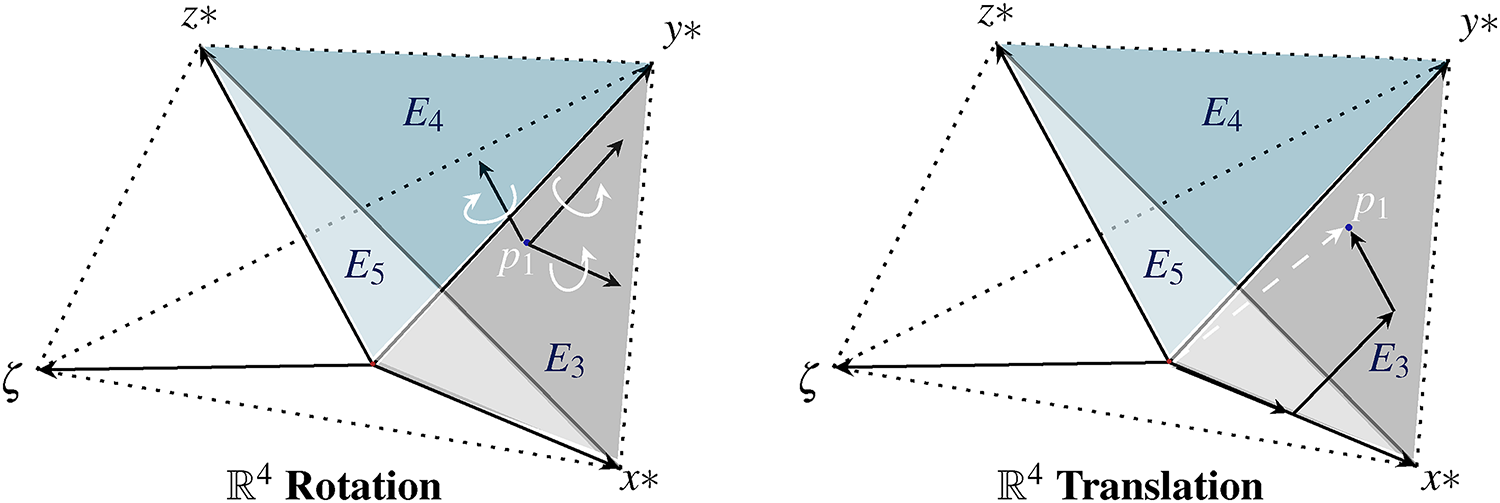

The Schlingel diagram rebuilds the Euclidean diagram by the planes \(E_{3}, E_{4}\) and \(E_{5}\). If no temporal aspects are considered, the measuring point \(p_{1}\) is located within the Euclidean planes. Positions are described in the case of \(\{ \zeta =0 \}\) by 3 rotations and 3 translations. A temporal shift causes the positional shift to the other planes. Under relativistic aspects, the resulting position will be described by 6 rotations and 4 translations.
