Fig. 4

From: To investigate the tumor promotion role of PLOD3 in colorectal cancer and its potential as a prognostic biomarker and therapeutic target

Fig. 4The alternative text for this image may have been generated using AI.

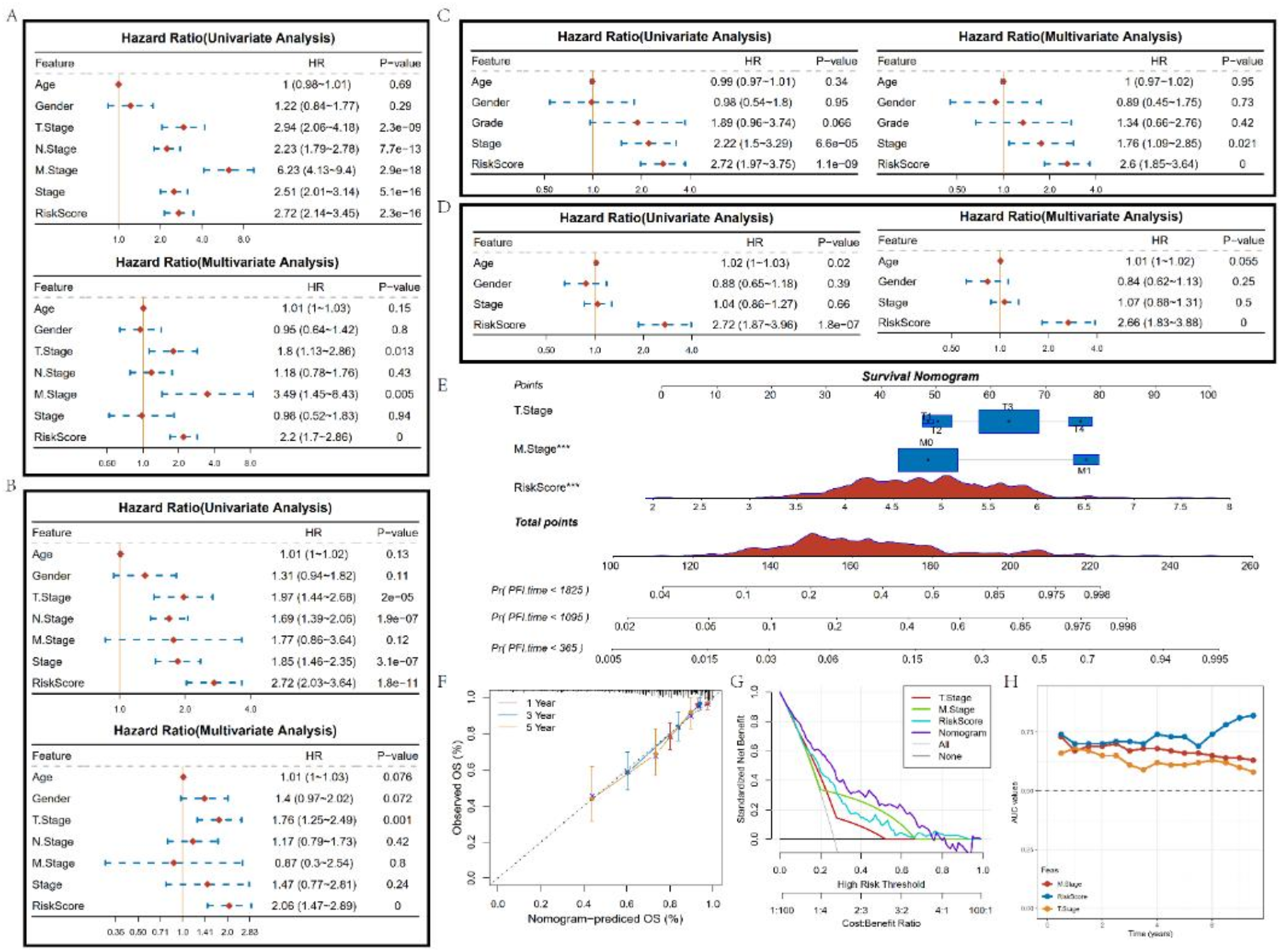

Comprehensive prognostic analysis and model validation across multiple datasets for colorectal cancer. (A) Univariate and multivariate analyses of the TCGA-COAD dataset; (B) Univariate and multivariate analyses of the GSE39582 dataset; (C) Univariate and multivariate analyses of the GSE17538 dataset; (D) Univariate and multivariate analyses of the GSE14333 dataset; (E) Nomogram for the TCGA-COAD dataset; (F) Calibration plot of the nomogram for the TCGA-COAD dataset; (G) Decision Curve Analysis (DCA) plot of clinical features and Risk Score for the TCGA-COAD dataset; (H) Area Under the Curve (AUC) at different time points for clinical features and Risk Score in the TCGA-COAD dataset.
