From: To investigate the tumor promotion role of PLOD3 in colorectal cancer and its potential as a prognostic biomarker and therapeutic target

Fig. 5The alternative text for this image may have been generated using AI.

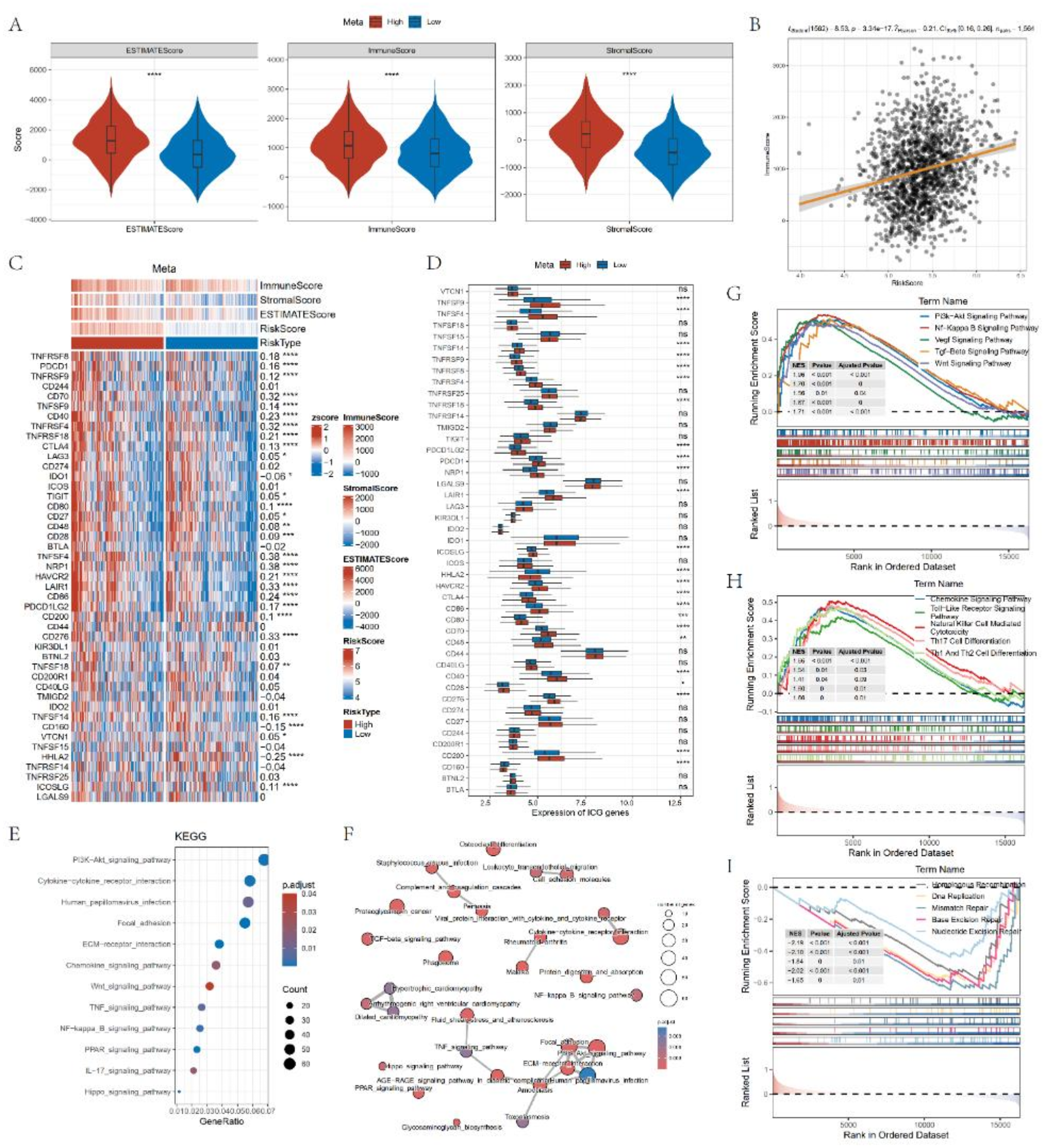

Analysis of immune-related properties and functions in the model. (A) Comparison of the immune microenvironment across risk groups in the Meta dataset; (B) Correlation analysis between ImmuneScore and RiskScore in the Meta dataset; (C) Heatmap illustrating the correlation between RiskScore and immune checkpoint genes in the Meta dataset; (D) Differential comparison of immune checkpoint genes across risk stratification in the Meta dataset; (E) KEGG enrichment analysis of differentially expressed genes in the risk stratification of the Meta dataset; (F) An enrichment map organizes enriched terms into a network, connecting terms that share common genes; (G,H) Significantly enriched pathways in the high-risk group of the Meta dataset as identified by GSEA analysis; (I) Significantly enriched pathways in the low-risk group of the Meta dataset as identified by GSEA analysis.
