From: Bioinformatics and experimental insights into F2RL1 as a key biomarker in cervical cancer diagnosis and prognosis

Fig. 2

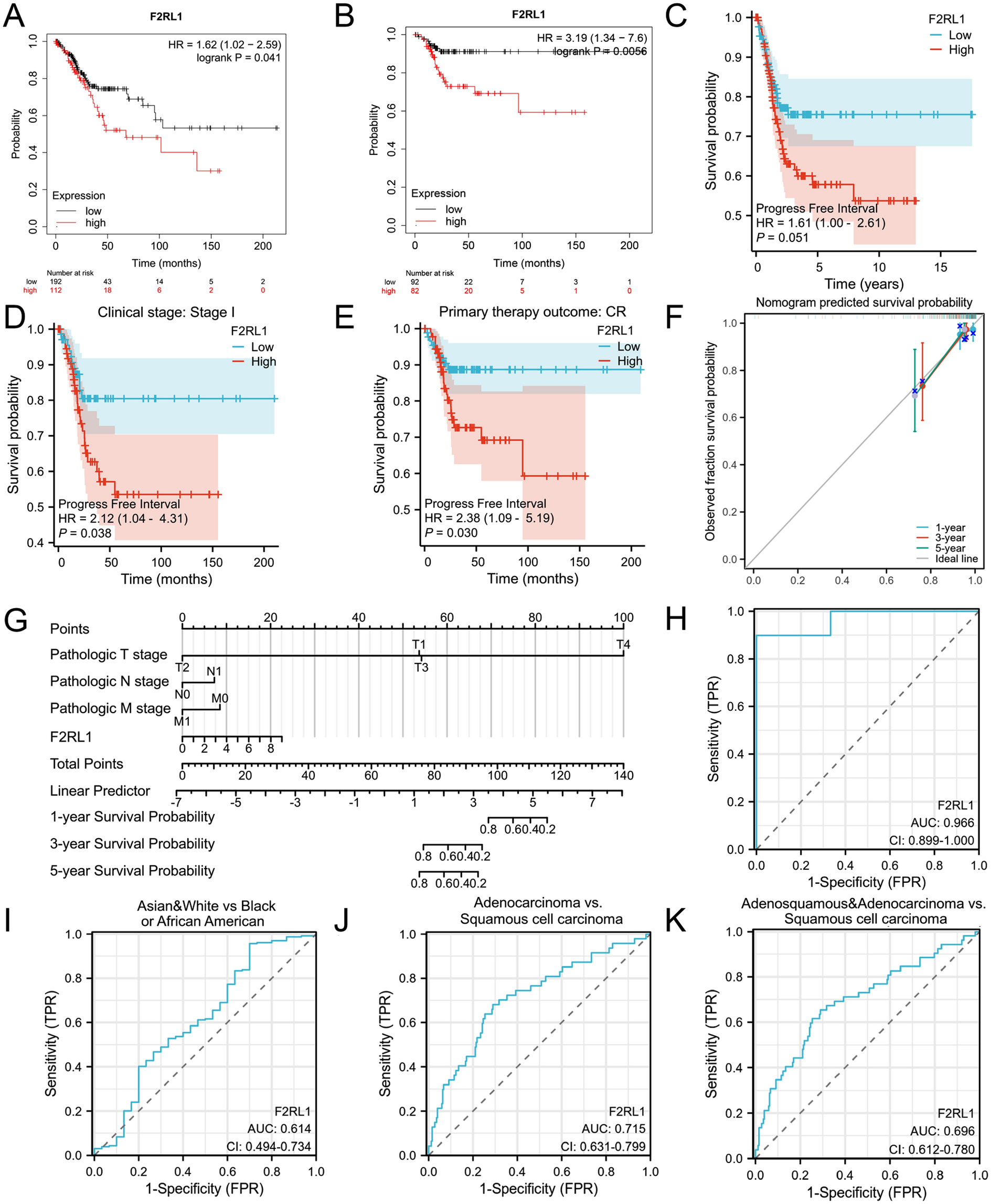

The effect of F2RL1 expression on prognosis and diagnostic value (A-E) Kaplan–Meier analysis of different expression levels of F2RL1. (A) OS, (B) PFS, (C) PFI,(D) Clinical Stage I, (E) Complete responsed for primary therapy outcome (F) Nomogram predicted survival probability with calibration curves.(G) The nomogram at 1, 3, and 5 years. (H–K) Diagnostic Value of F2RL1 in CCa. (H) ROC curve demonstrated the diagnostic value of F2RL1 in CCa. (I-K) ROC curve for F2RL1 in different races and pathological types.
