Figure 5
From: Characterization of a mock up nuclear waste package using energy resolved MeV neutron analysis

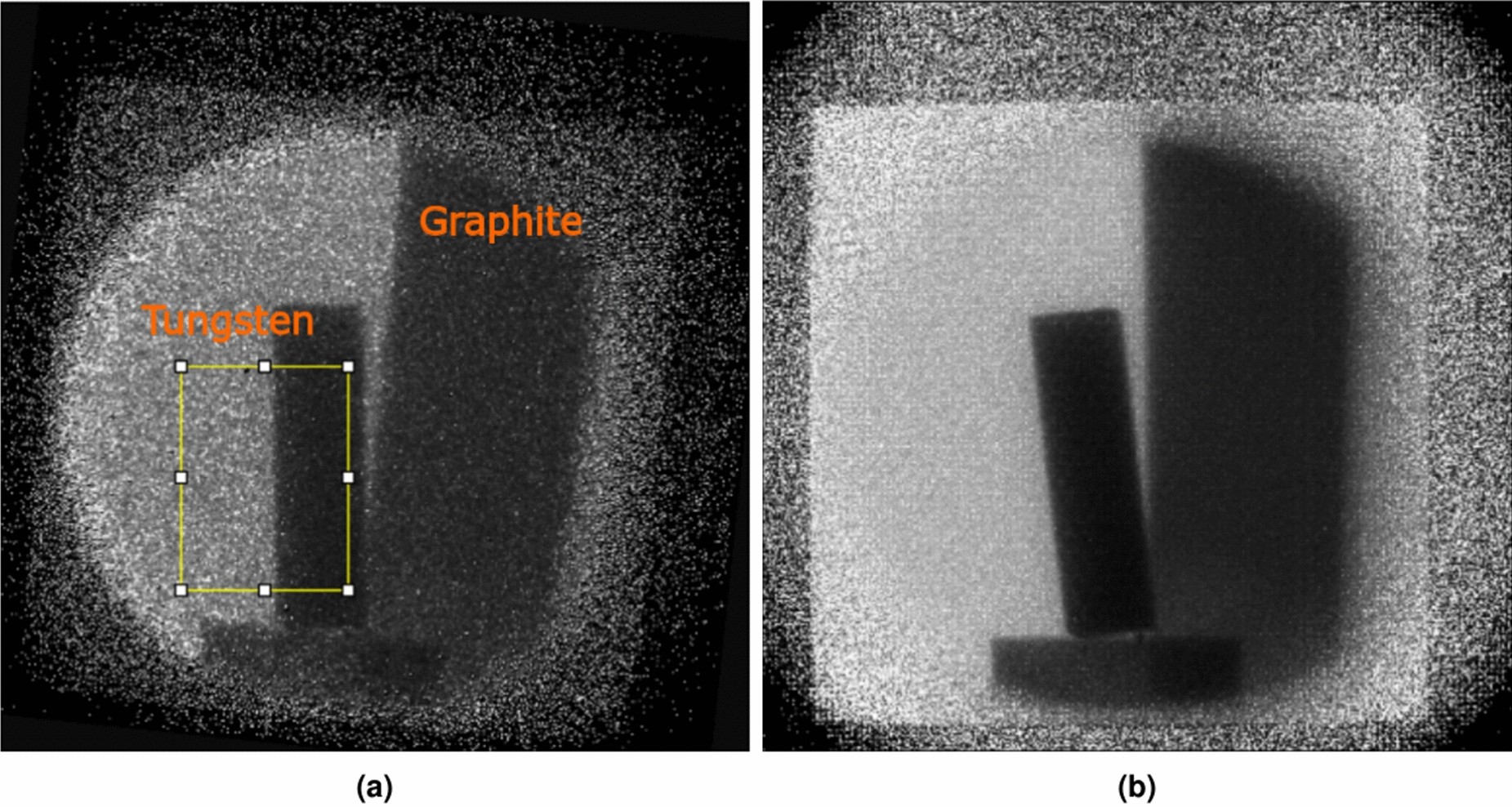

Radiograph of a tungsten and a graphite block used for the parameter scan (neutron energies 2.5 MeV to 8 MeV). Data was evaluated with the highest resolution parameter set (a) and the highest contrast parameter set (b). (a) The yellow box shows the region-of-interest for which the line-spread function and the pixel intensity histogram were determined. The image was rotated clockwise \(6^{\circ }\). (b) Unlike (a) the image has not been rotated.
