Figure 8
From: Characterization of a mock up nuclear waste package using energy resolved MeV neutron analysis

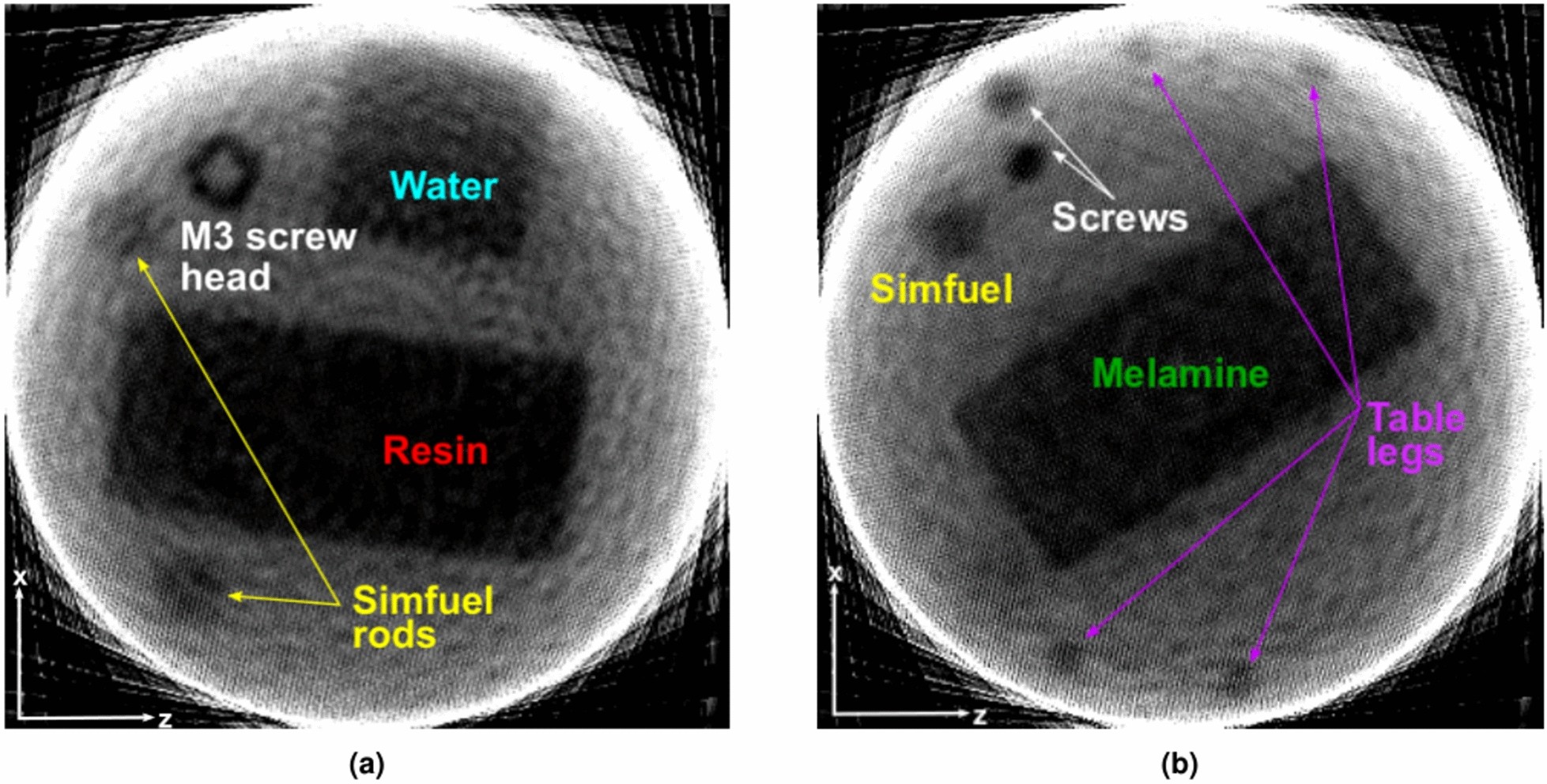

Reconstructed tomography slices in the horizontal plane for two different heights (a) Slice of the upper part of the sample assembly showing the wet resin container, the water container, two SIMFUEL rods, and the head of the M3 screw (the second screw starts below this slice as it is lower). The M3 head has a diameter of 5.68 mm with the largest diameter of the hole being 2.58 mm. (b) Slice of the lower part of the sample assembly showing the melamine container, two SIMFUEL rods and both screws. Even the legs of the upper sample table are visible.
