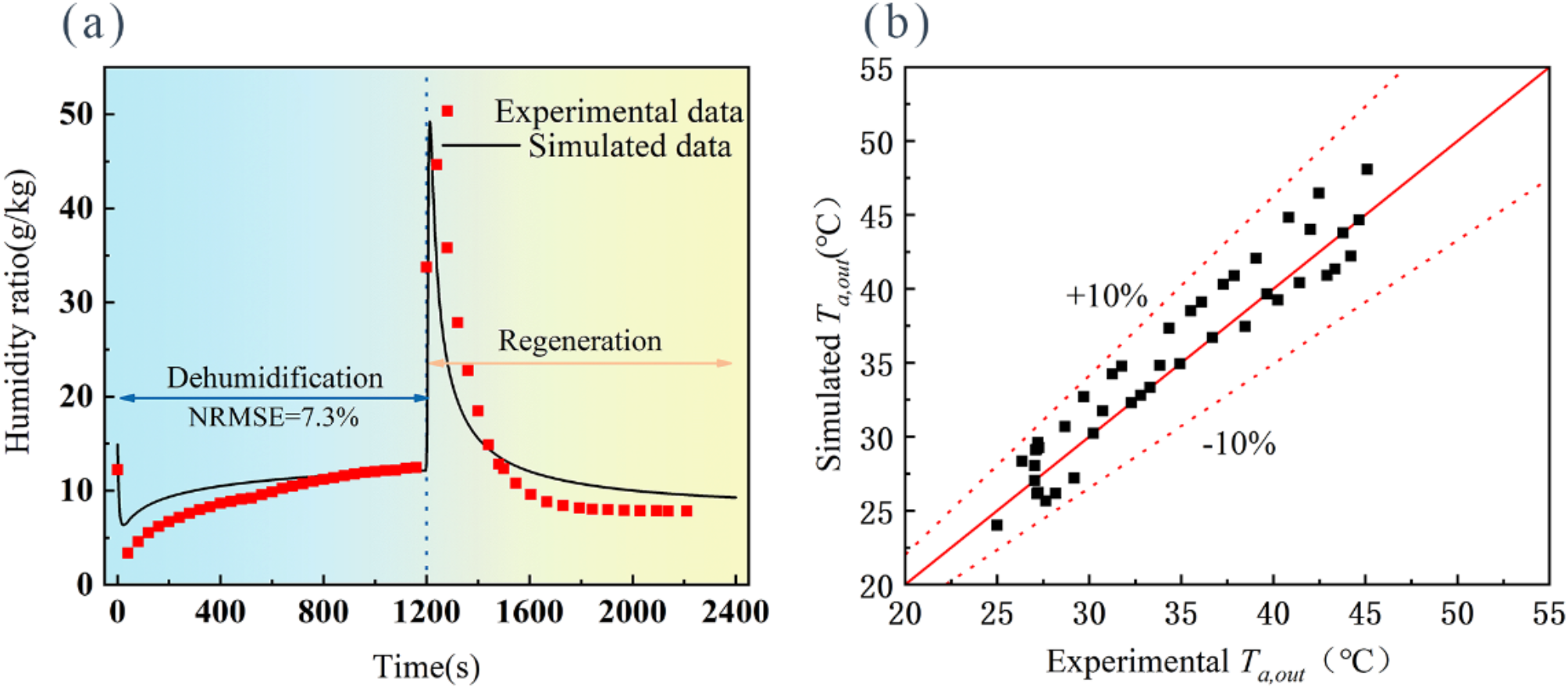

Fig. 7
From: A novel curdlan based desiccant coated heat exchanger for efficient dehumidification
Comparisons of (a) the outlet air humidity ratios of the simulation and experimental results at a cycle time of 1200s, (b) accuracy of the air outlet temperature in the numerical simulation and experiment. (Inlet air 25 °C/80%RH, air inlet flow velocity: 1 m/s, cooling water: 25 °C, hot water: 80 °C)
