Fig. 10
From: Anchoring effect of NPR cables under dynamic conditions and its engineering applications

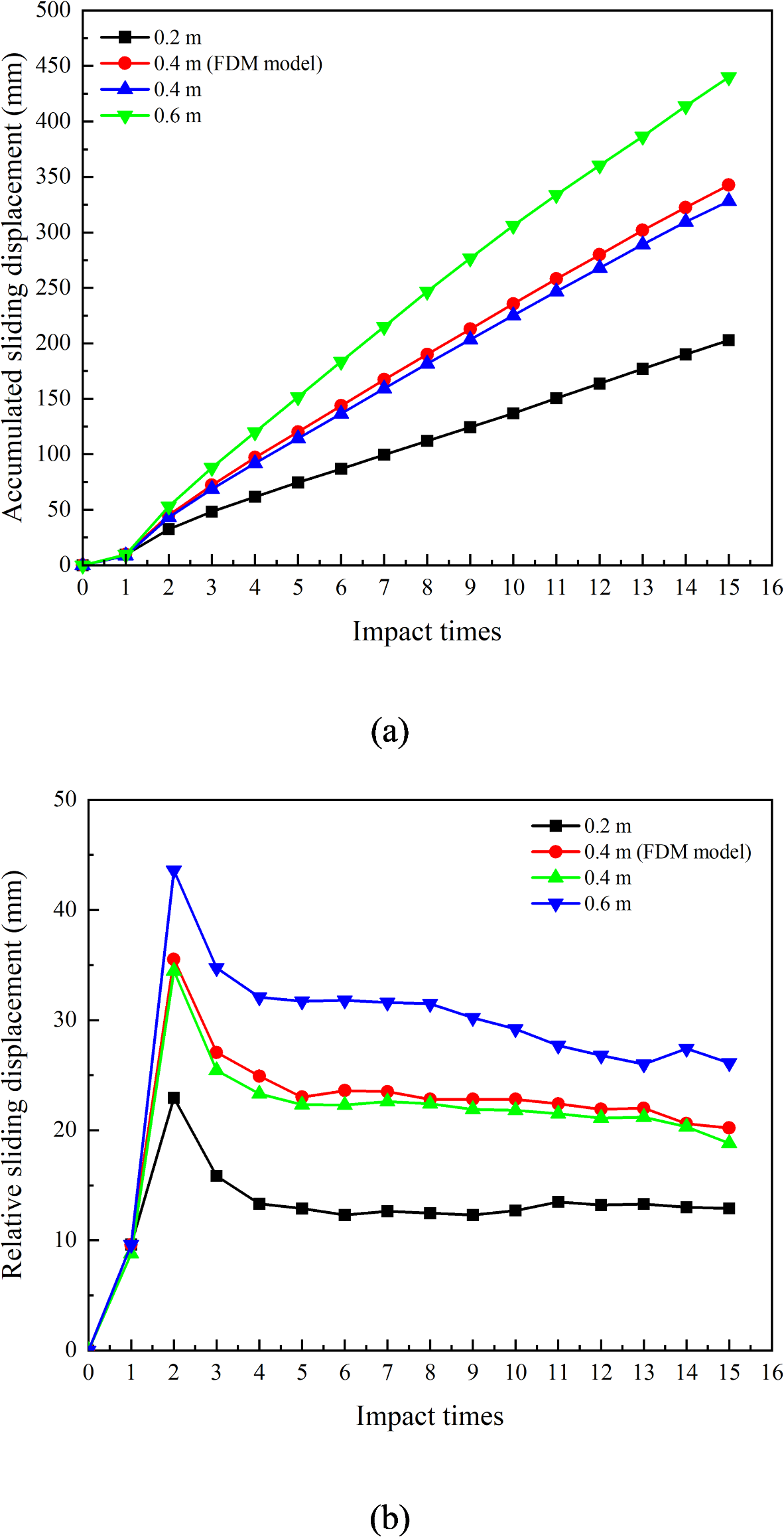

The cone-pipe sliding displacement: (a) the cone-pipe cumulative sliding displacement; (b) the cone-pipe relative sliding displacement.
