From: Investigating the role of gut microbiota in diabetic nephropathy through plasma proteome mediated analysis

Fig. 6

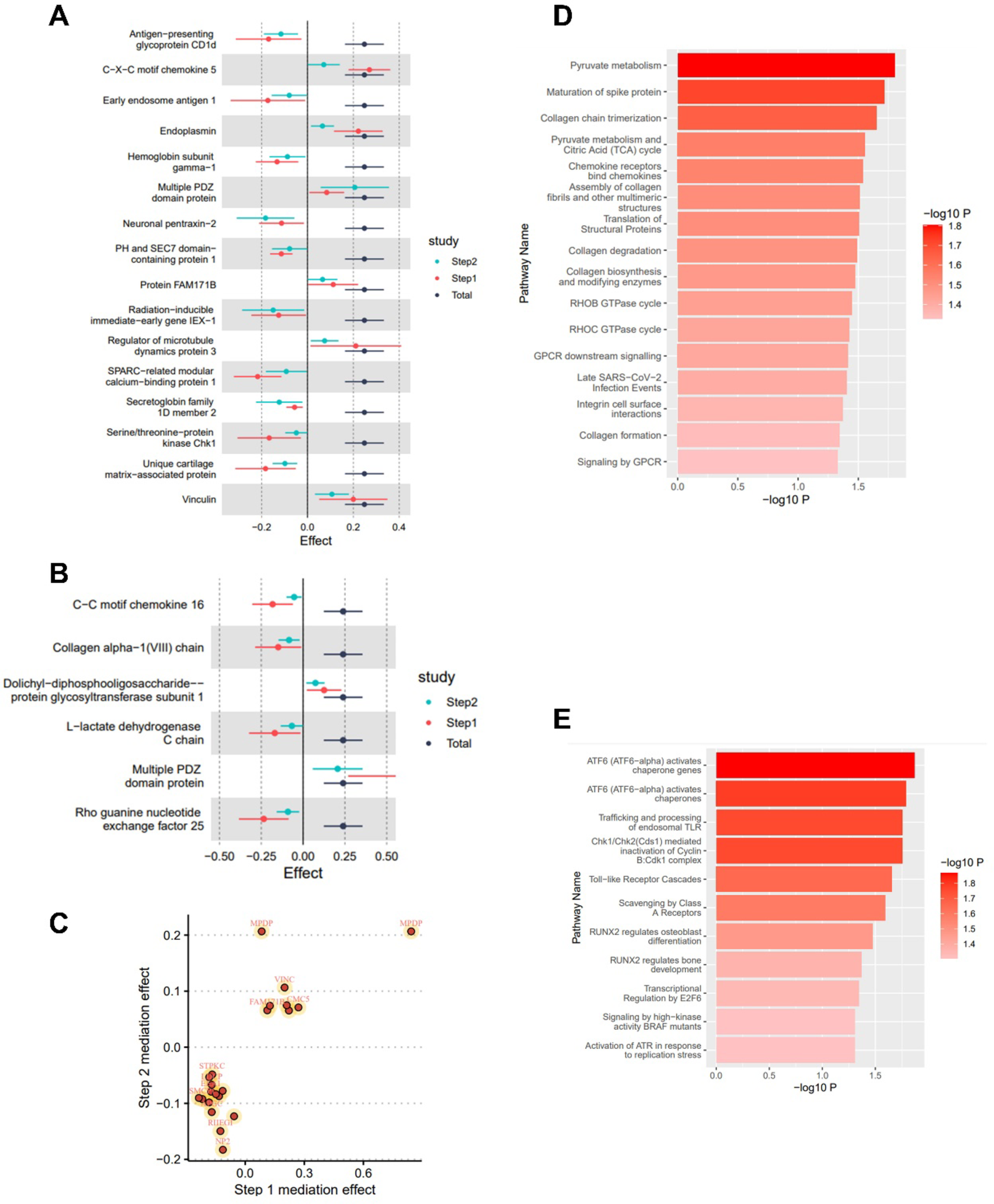

Results of mediation and enrichment analyses. Note: (A) Forest plot of the total and two-step mediation effects of Catenibacterium; (B) Forest plot of the total and two-step mediation effects of Parasutterella; (C) Scatter plot of the two-step effects of mediation proteins; (D) Pathways of metabolic or signaling transduction mediated by Parasutterella in the incidence of diabetic nephropathy; (E) Pathways of metabolic or signaling transduction mediated by Catenibacterium in the incidence of diabetic nephropathy.
