Fig. 8

From: Fabrication of well-defined magnetic microporous polymeric monoliths using simple non-aqueous emulsification technique

Fig. 8

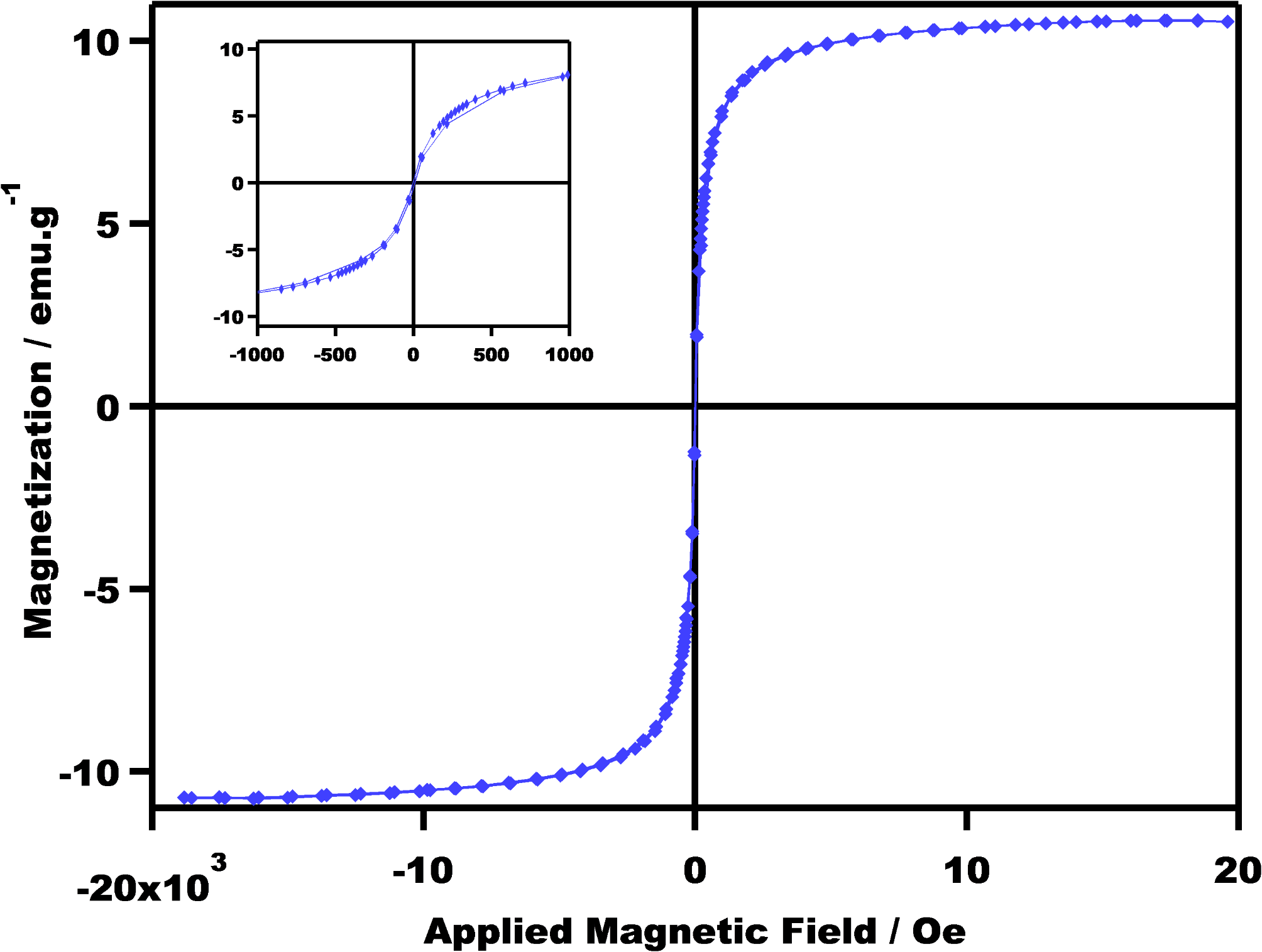

The magnetization curve of a polymeric monolith containing 5 wt% OCMNs was investigated at room temperature (298 K). A magnetic field strength ranging from ± 20 kOe was applied. The resulting hysteresis loop, which demonstrates the material’s magnetic behavior, is clearly depicted in an enlarged inset focused on the region around zero magnetic field.
