From: Metabonomics reveals the mechanism of stress resistance in Vetiveria zizanioides inoculated with AMF under copper stress

Fig. 7

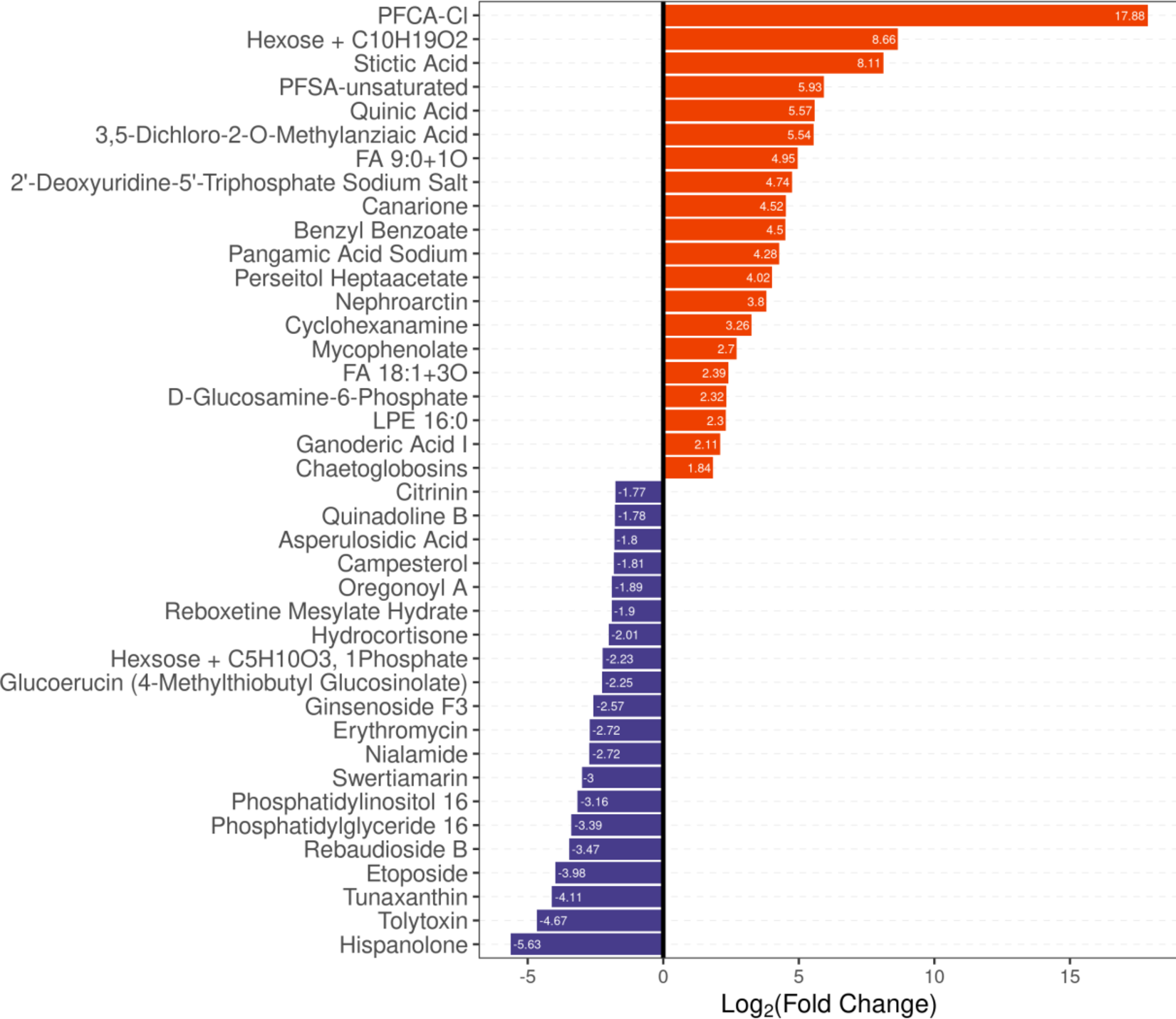

M-Cu VS Cu difference multiple bar chart. Note: the abscissa is log2FC of the differential metabolite, that is, the differential multiple of the differential metabolite is based on 2, and the ordinate is the differential metabolite. Red indicates that the metabolite content is up-regulated, and blue indicates that the metabolite content is down-regulated.
