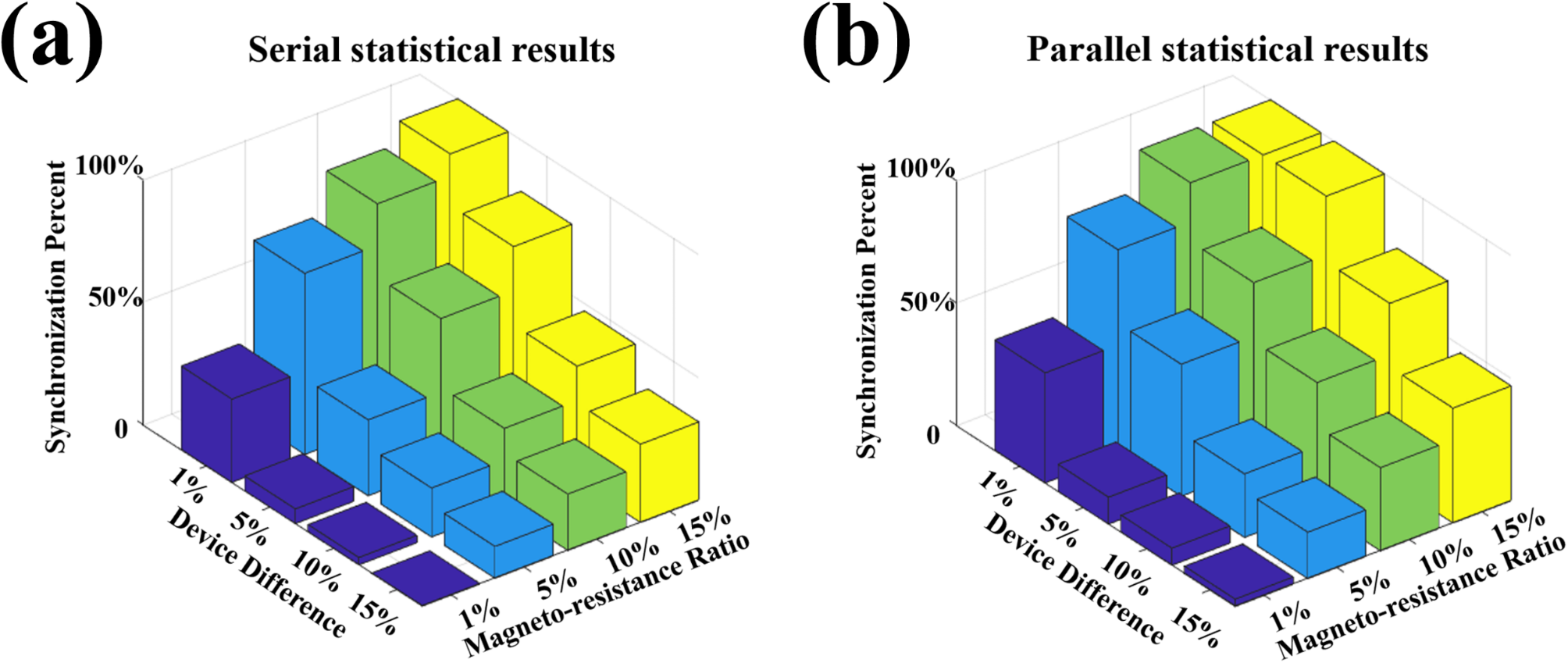

Fig. 6
Synchronization percent for 100 times simulation for different conditions for SHNOs connected in series (a) and parallel (b). All the simulations are performed with \({I_{drive}}=10\)Â mA and \({K_u}\)= 10 kJ/m3. Generally, it is easier for SHNOs connected in parallel to realize synchronization compared with those connected in series.
