Fig. 9

From: Identification of osteoarthritis-associated chondrocyte subpopulations and key gene-regulating drugs based on multi-omics analysis

Fig. 9

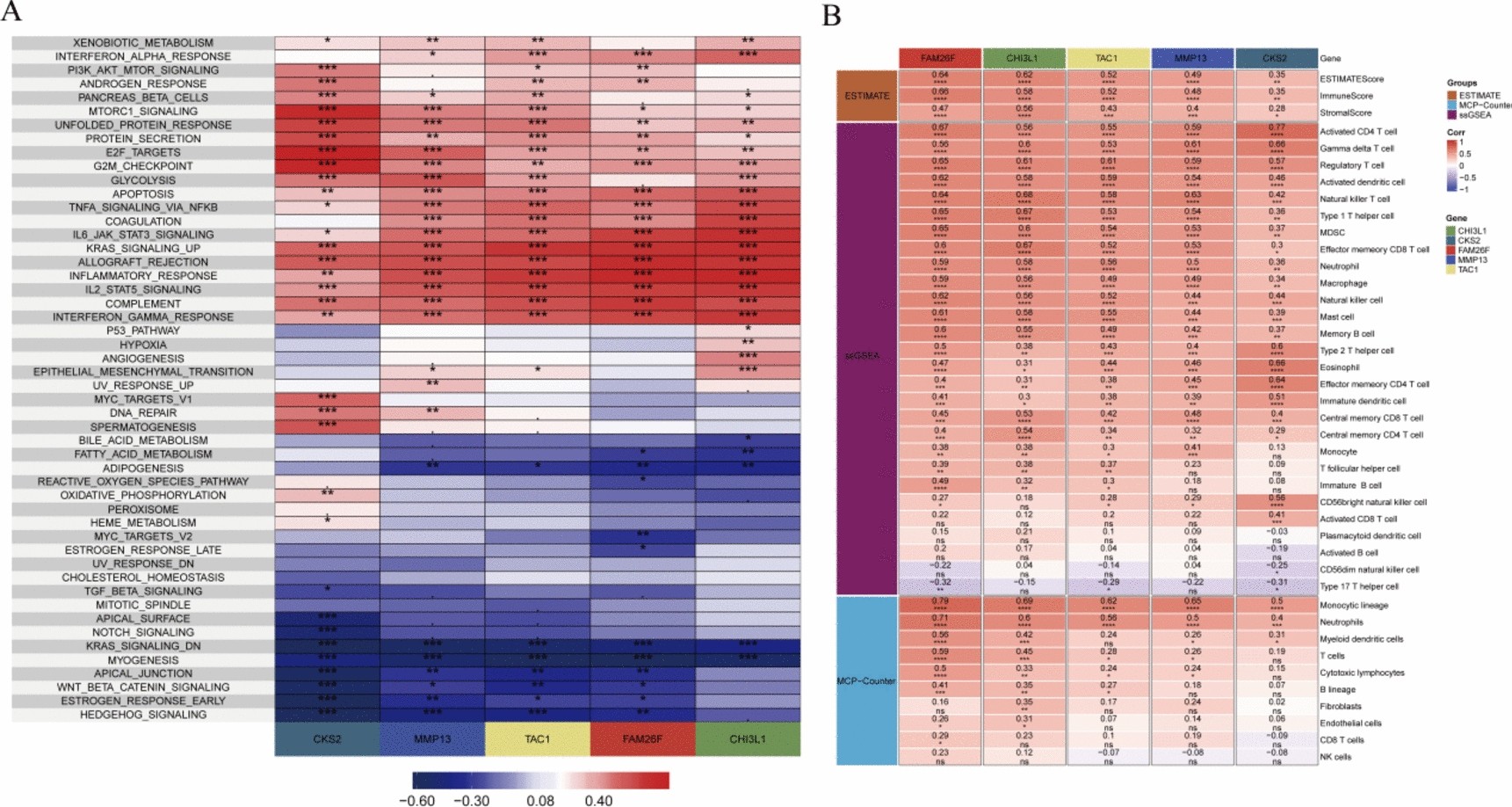

The relationship between the hub genes and the immune and pathway. (A) Correlation of hub genes with pathways in the training set; (B) Correlation of hub genes with immune scores in the training set. (*in the figure represents P < 0.05, **represents P < 0.01, ***represents P < 0.001, ****represents P < 0.0001, and ns represents P > 0.05).
