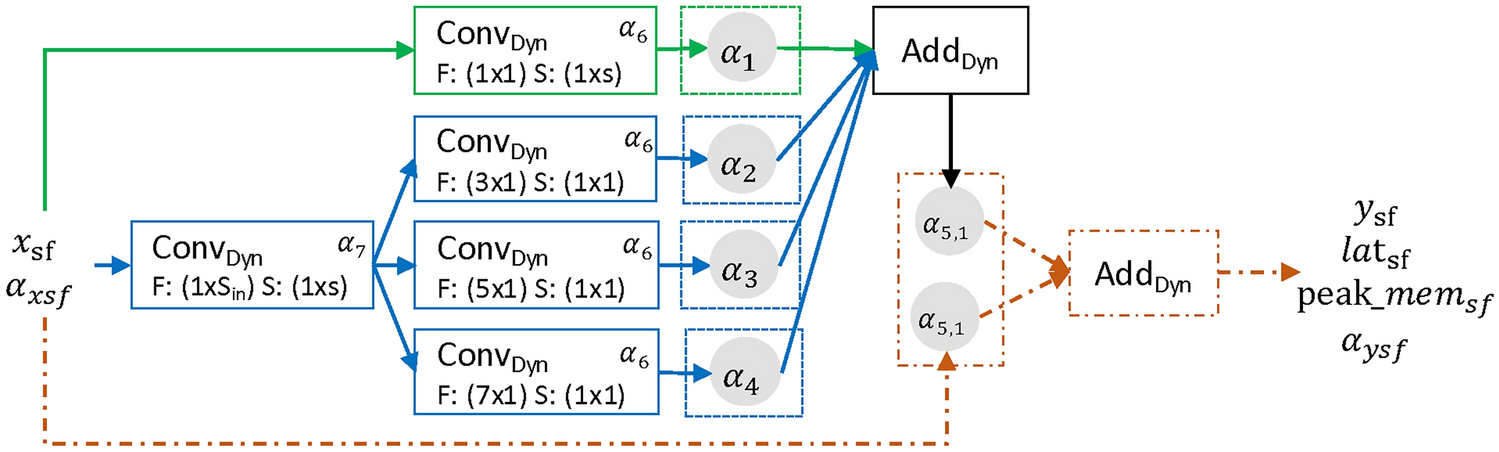

Fig. 6

Sensor-Fusion cell. Consists of three pathways, can be configured with stride one or two and depending on that contains six or seven decision groups. F denotes the filter size while S denotes the stride configuration. The orange pathway is only active, when \(stride_{sf} = 1\).
