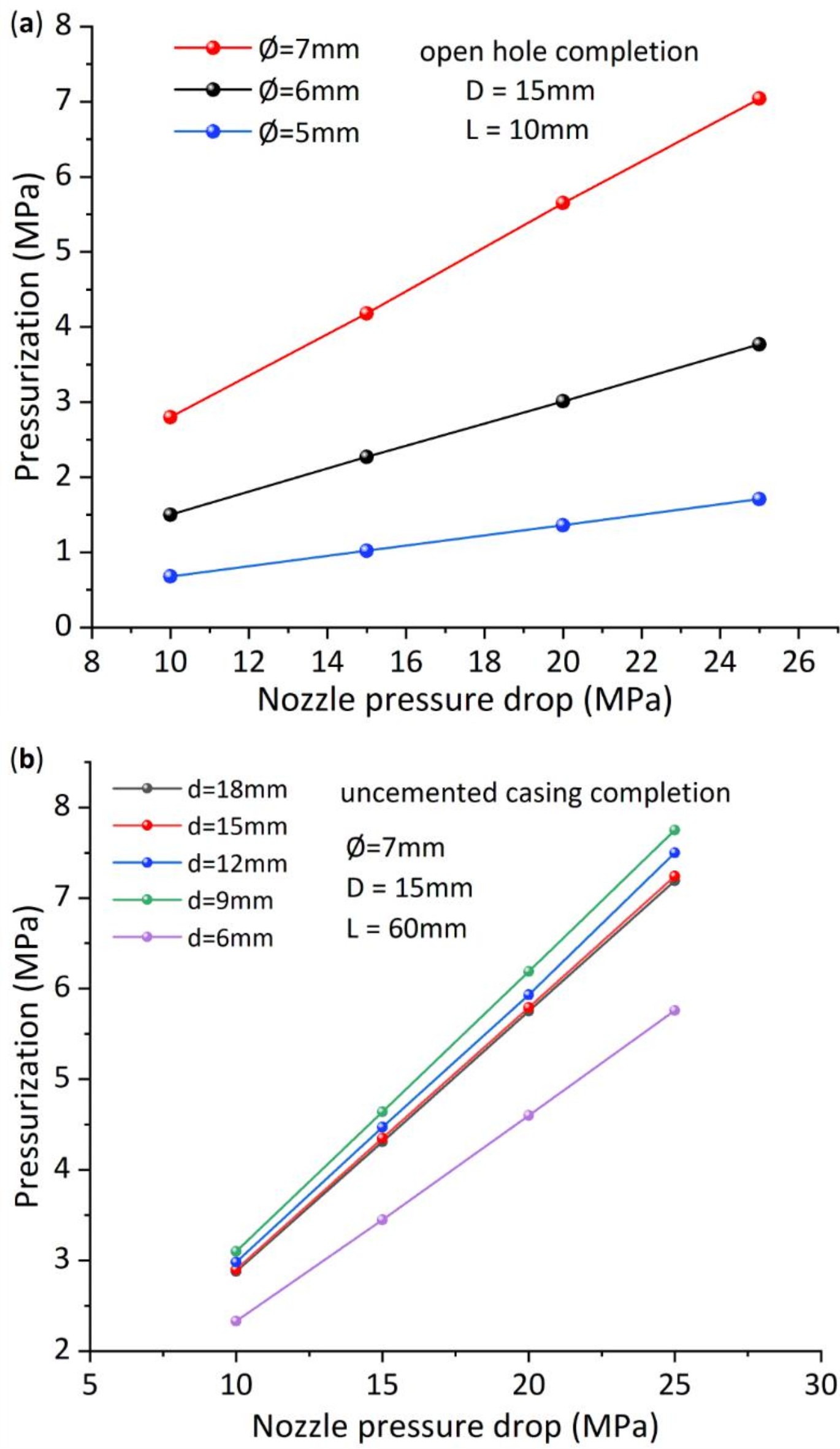

Fig. 16

Effect of nozzle pressure drop on erosion tunnel pressurization. (a) open hole completion, the nozzle diameter changed; (b) uncemented casing completion, the nozzle diameter was 7 mm and the hole diameter on casing changed.
