Fig. 4

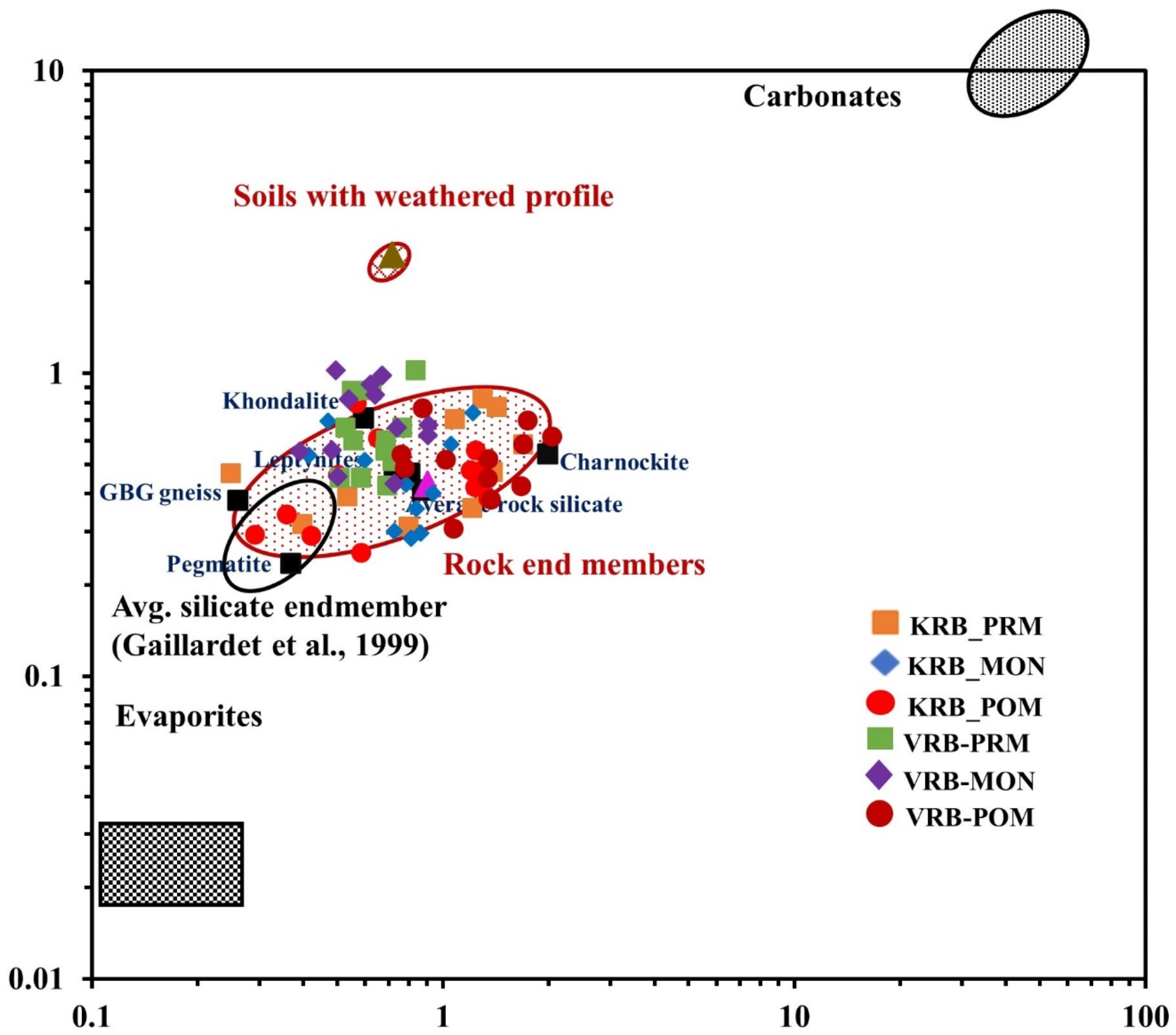

End-member mixing diagram of KVRB modified after Gailardet et al. (1999) to incorporate the dominant lithological characterstics of the KVRB.
Fig. 4 | Scientific Reports
End-member mixing diagram of KVRB modified after Gailardet et al. (1999) to incorporate the dominant lithological characterstics of the KVRB.
