Fig. 3

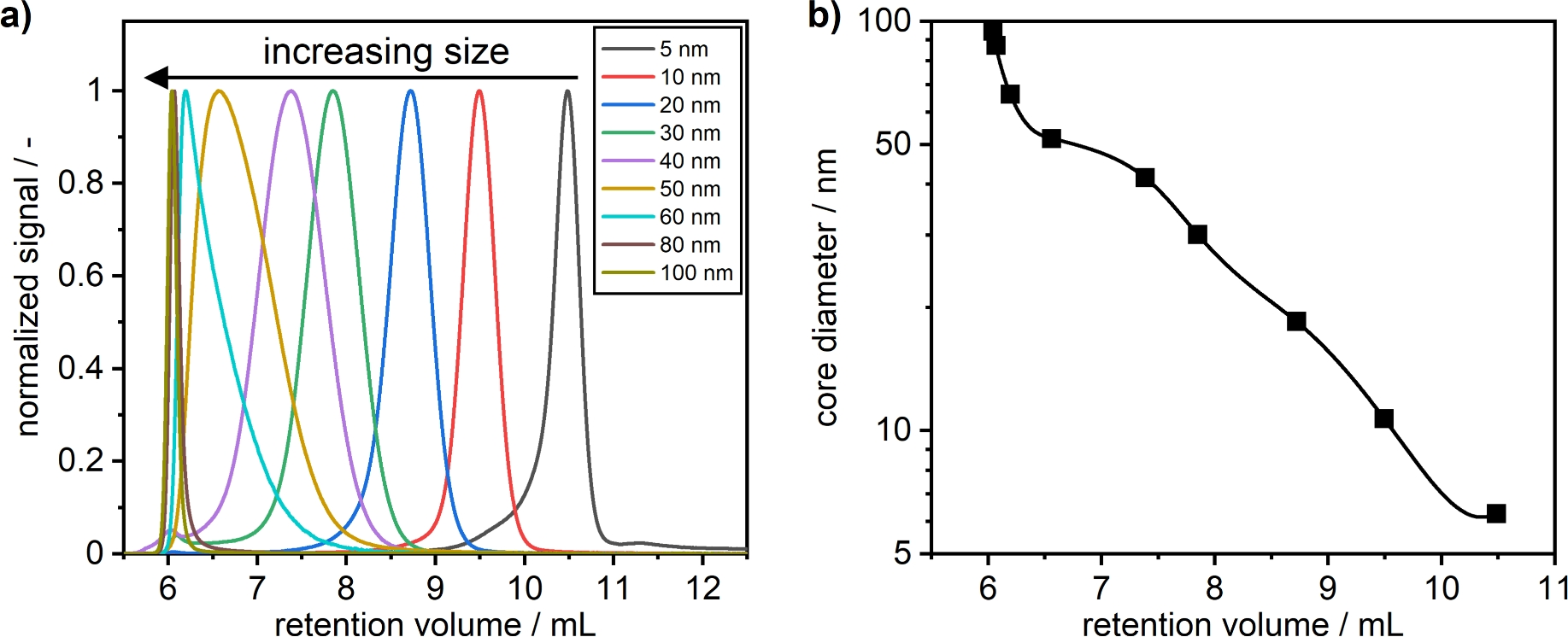

(a) Overlaid chromatograms of AuNP standards with diameters of 100, 80, 60, 50, 40, 30, 20, 10 and 5 nm (from left to right) measured at 520 nm. (b) Resulting calibration curve determined from STEM core diameters and respective retention volumes of peak maxima.
