From: The c.119-123dup5bp mutation in human γC-crystallin destabilizes the protein and activates the unfolded protein response to cause highly variable cataracts

Fig. 8

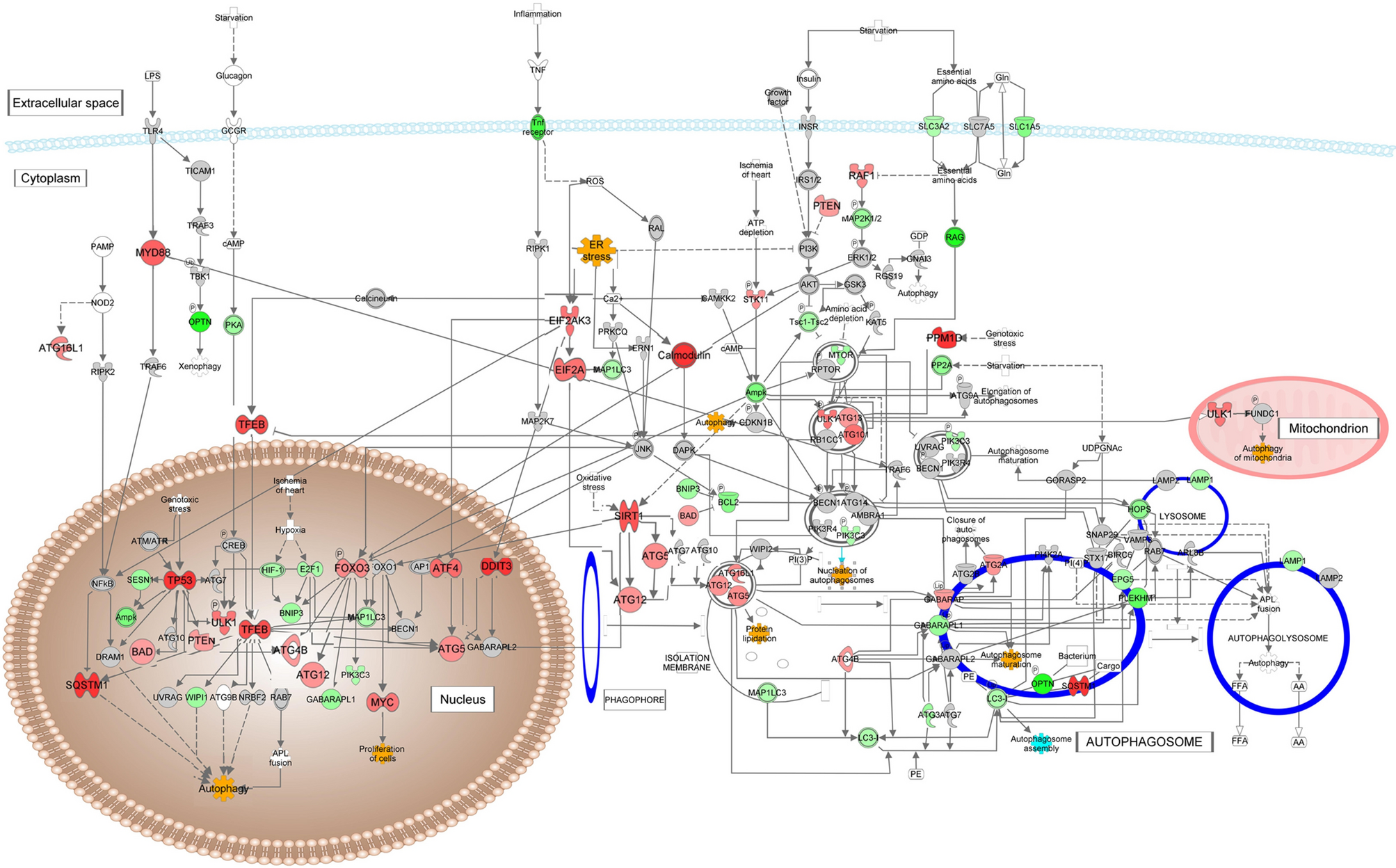

Autophagy and Apoptosis pathways downstream from the UPR: Pathways for autophagy. Expression levels are indicated by the shading of genes: increased expression is indicated by red shading, decreased expression is indicated by green shading, and genes whose expression changes less than 1.2-fold are shaded grey. The depth of shading is proportional to the fold change in expression. Processes predicted to be increased are shaded yellow.
