Fig. 5 | Scientific Reports

Fig. 5

From: Oxidative stress in a cellular model of alcohol-related liver disease: protection using curcumin nanoformulations

Fig. 5

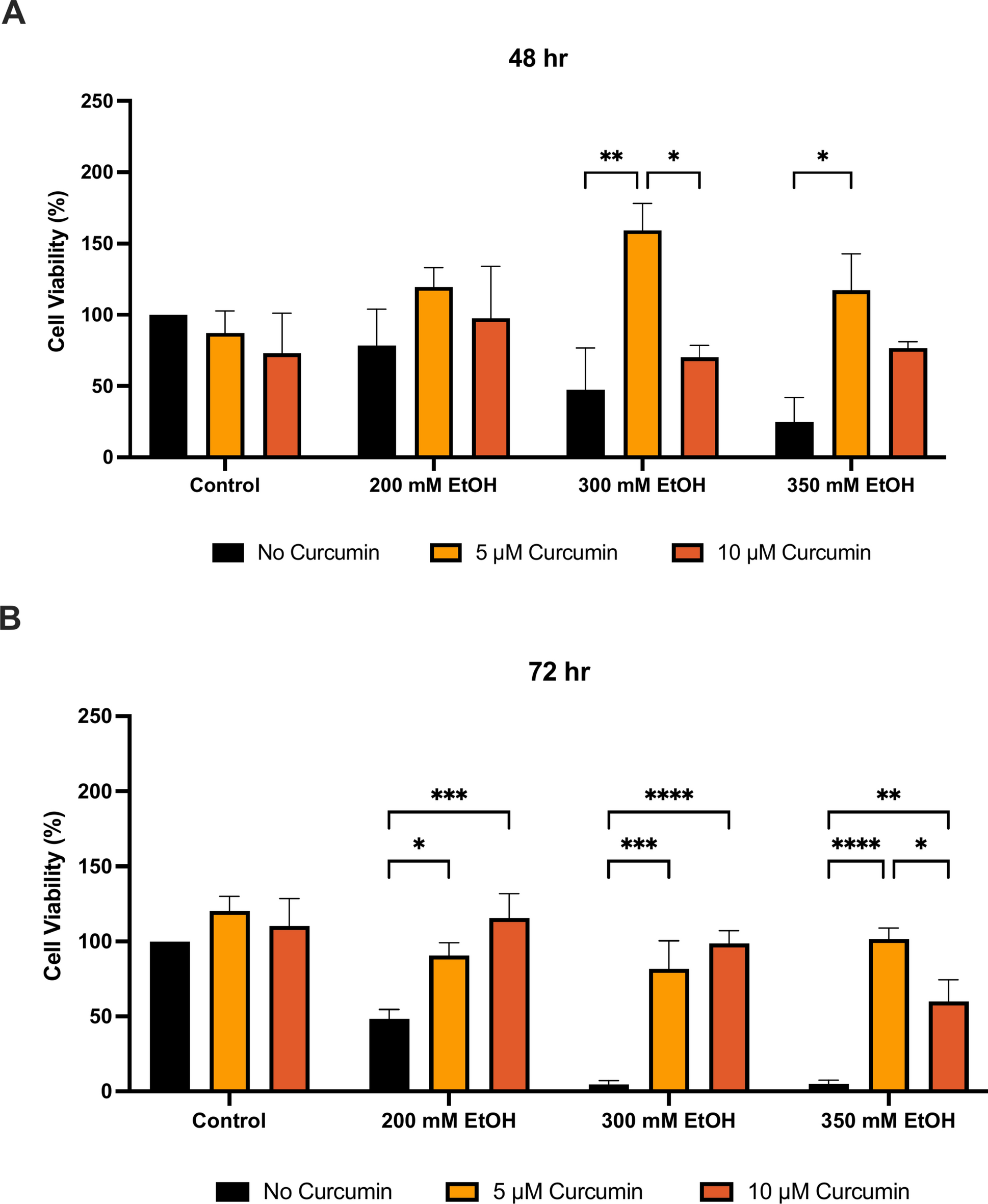

The effect of curcumin free drug co-treatment with and ethanol on cell viability at (A) 48 h and (B) 72 h. Cells were seeded in 96-well plates and co-treated with ethanol and curcumin. Viability was determined by MTT assay. Data is presented as percentage from the control. Results presented as mean + SEM (n = 3) *P ≤ 0.05, **P ≤ 0.01, ***P ≤ 0.001, ****P ≤ 0.0001.
