Fig. 9

From: Multi-scale modelling of battery cooling systems for grid frequency regulation with high C-rate amplitude and non-uniform cell heat generation

Fig. 9The alt text for this image may have been generated using AI.

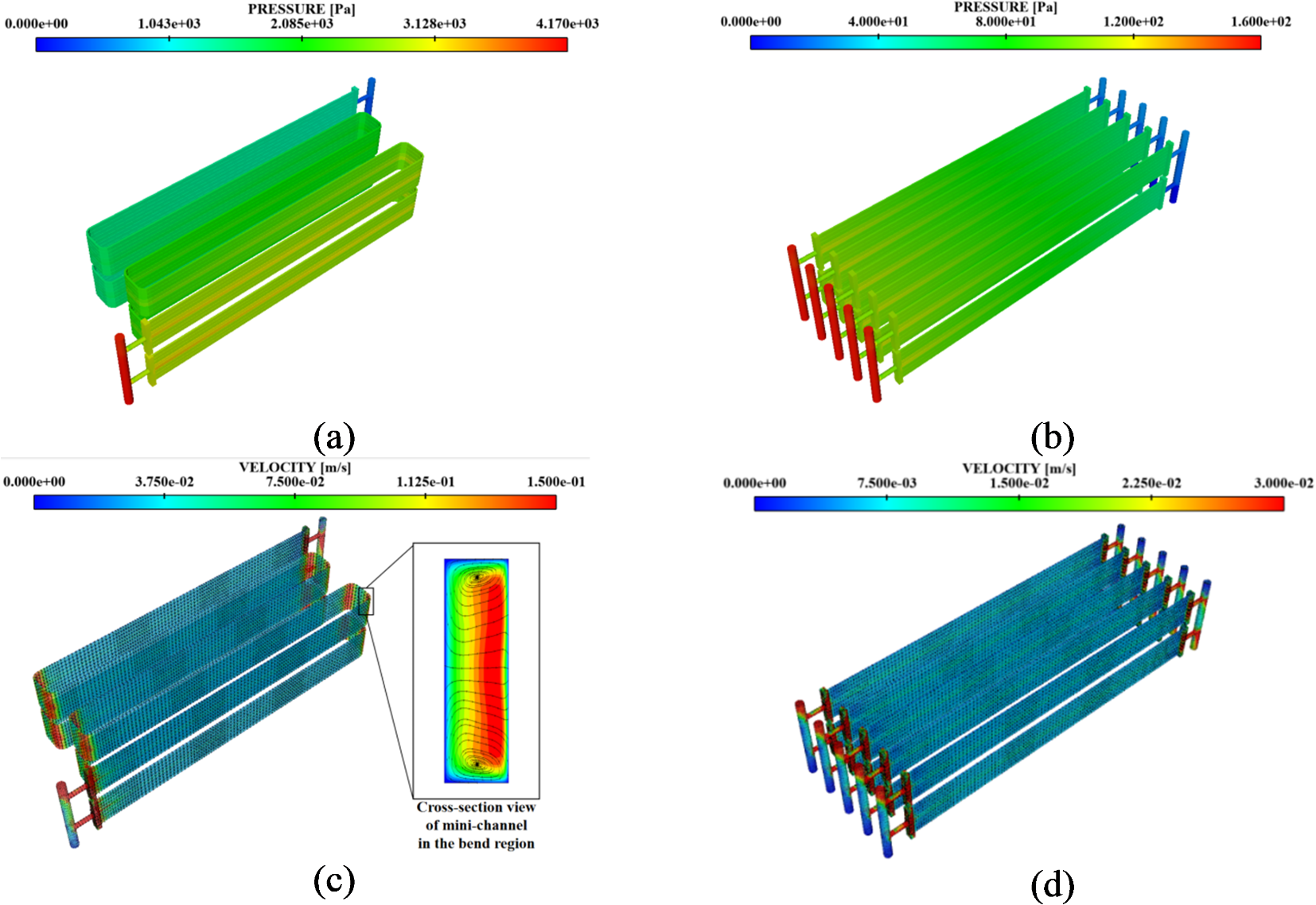

Comparison of flow field variables. (a) Pressure distribution in the serial channel. (b) Pressure distribution in the parallel channel. (c) Velocity magnitude and vector of coolant in the serial channel. (d) Velocity magnitude and vector of coolant in the parallel channel.
