Fig. 2

From: Insights into γ-irradiation effect on hole structure and conductivity of doped ethylene–propylene–diene rubber with different wheat husk fibers lengths

Fig. 2

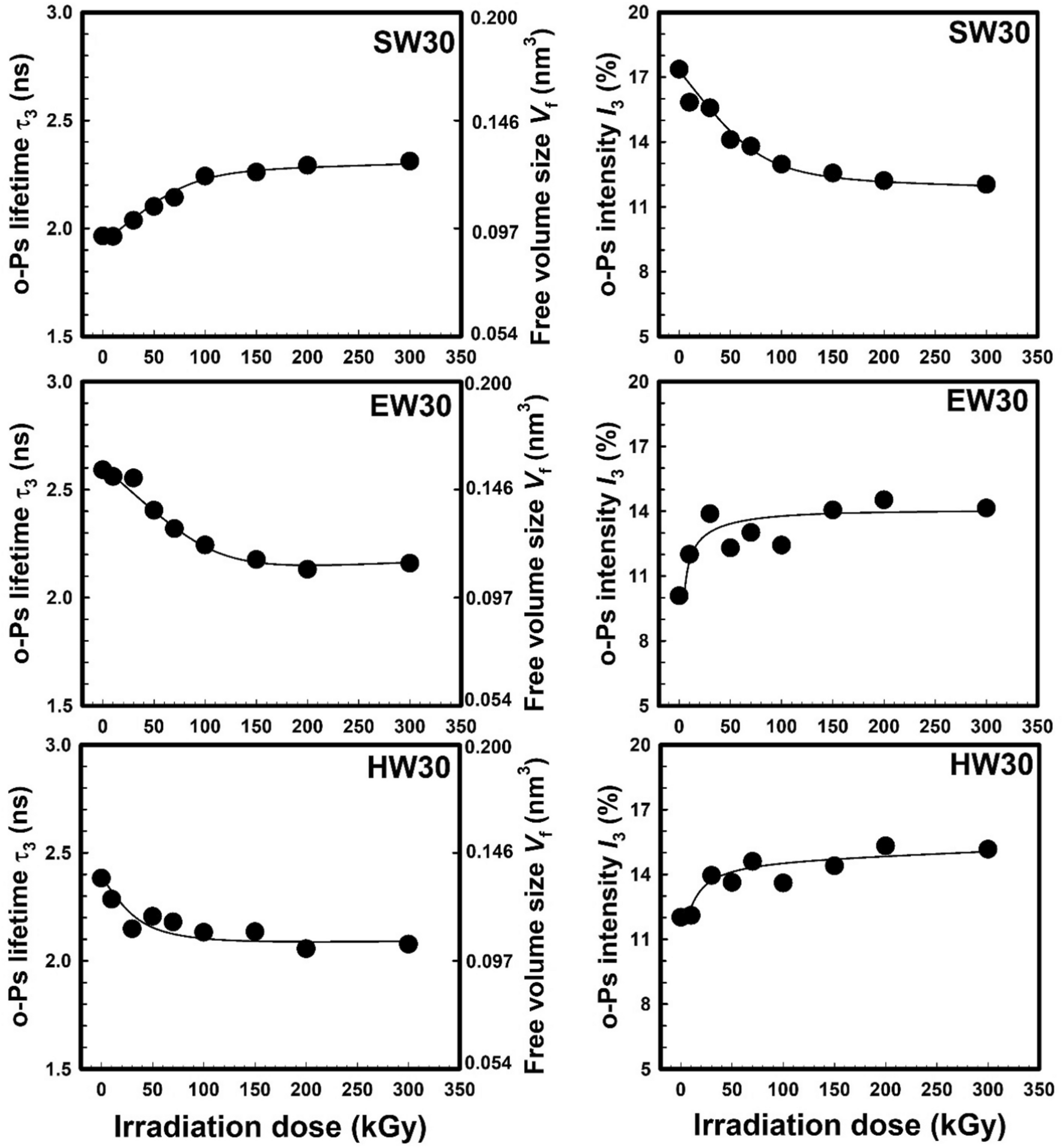

Lifetime τ3 and intensity I3 of o-Ps as a function of the irradiated dose for the SW30, EW30, and HW30 samples. The scale of the right ordinate in the left panel is the o-Ps hole volume size V deduced from Eqs. (4 and 5). The statistical error of each point is smaller than the plotting symbol. The solid line is drawn just for clarification.
