From: Advanced fermentation techniques enhance dioxolanone type biopesticide production from Phyllosticta capitalensis

Fig. 7

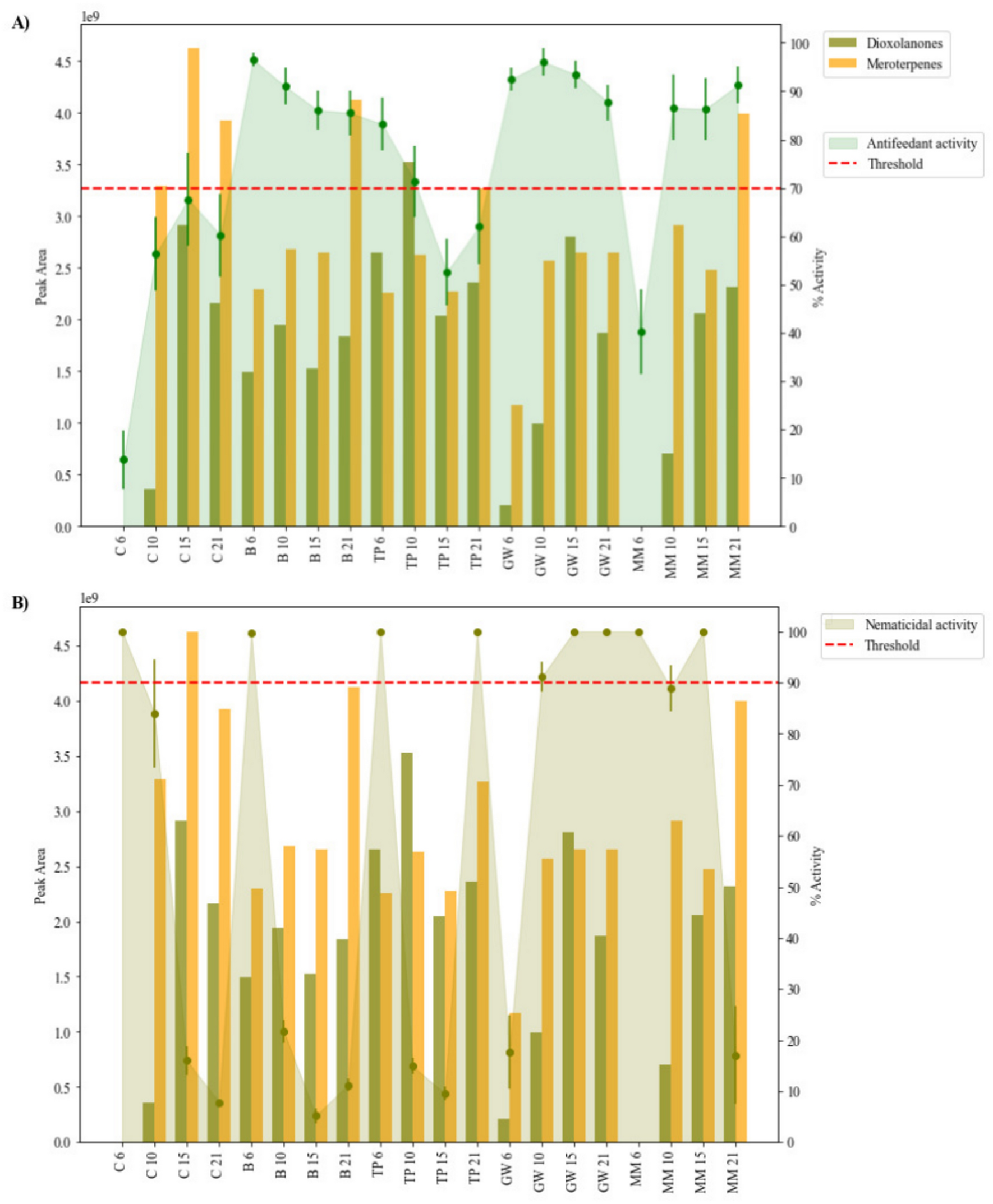

Biopesticide results. (Panel A) Antifeedant results against Myzus Persicae. The red dotted line represents the 70% activity, at which the extracts are considered active. (Panel B) Nematicide bioassay against Meloidogyne javanica. The red dotted line represents the 90% activity, at which the extracts are considered active. The area shows the antifeedant activity and the bars show the production of dioxolanones and meroterpenes in terms of area.
