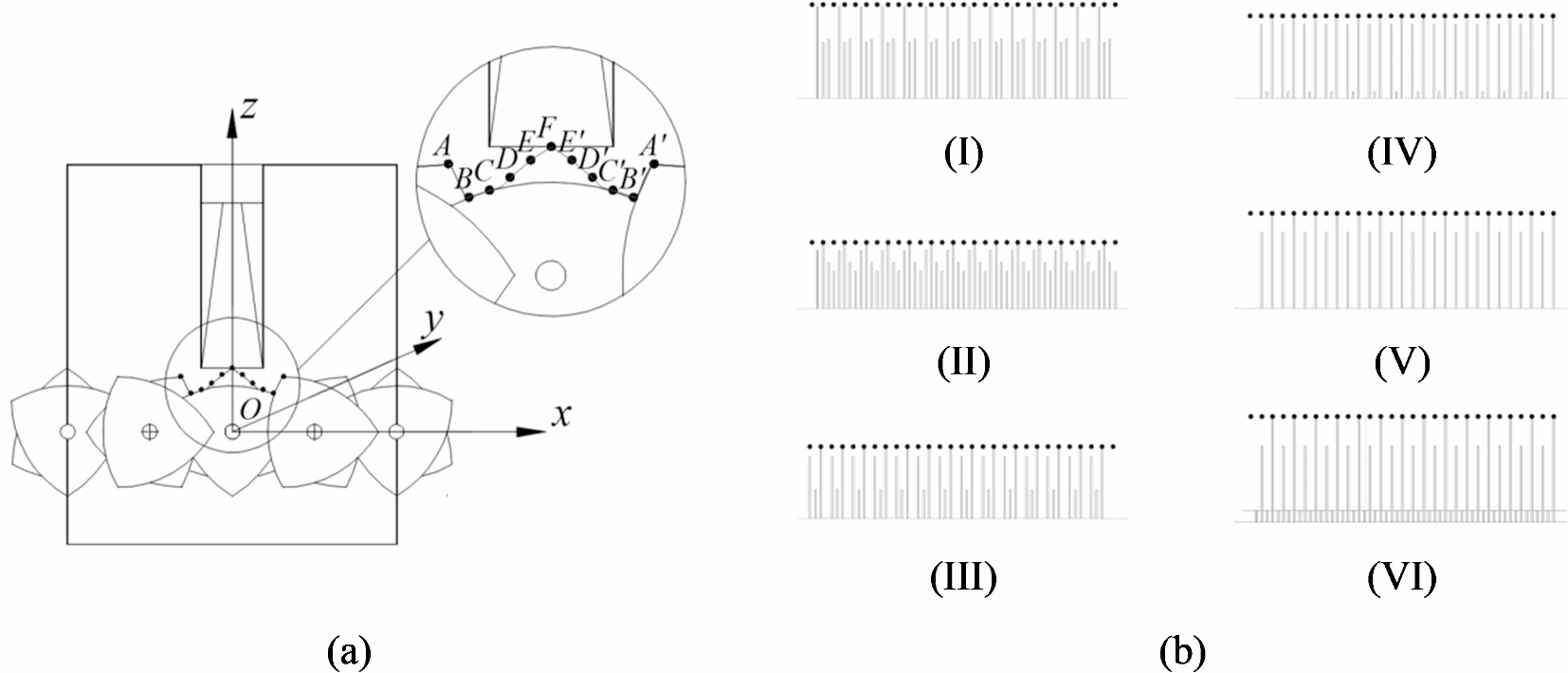

Distribution of airflow velocity measurement points in the airflow-disc sieve double action area. (a) Measuring points along the length of the disc sieve. A ~ A′ represent Column 1 ~ Column 11 in sequence. (b) Measuring points along the width of the disc sieve. (I) represents Column 1 (also Column 11); (II) represents Column 2 (also Column 10); (III) represents Column 3 (also Column 9); (IV) represents Column 4 (also Column 8); (V) represents Column 5 (also Column 7); (VI) represents Column 6.
