Fig. 5

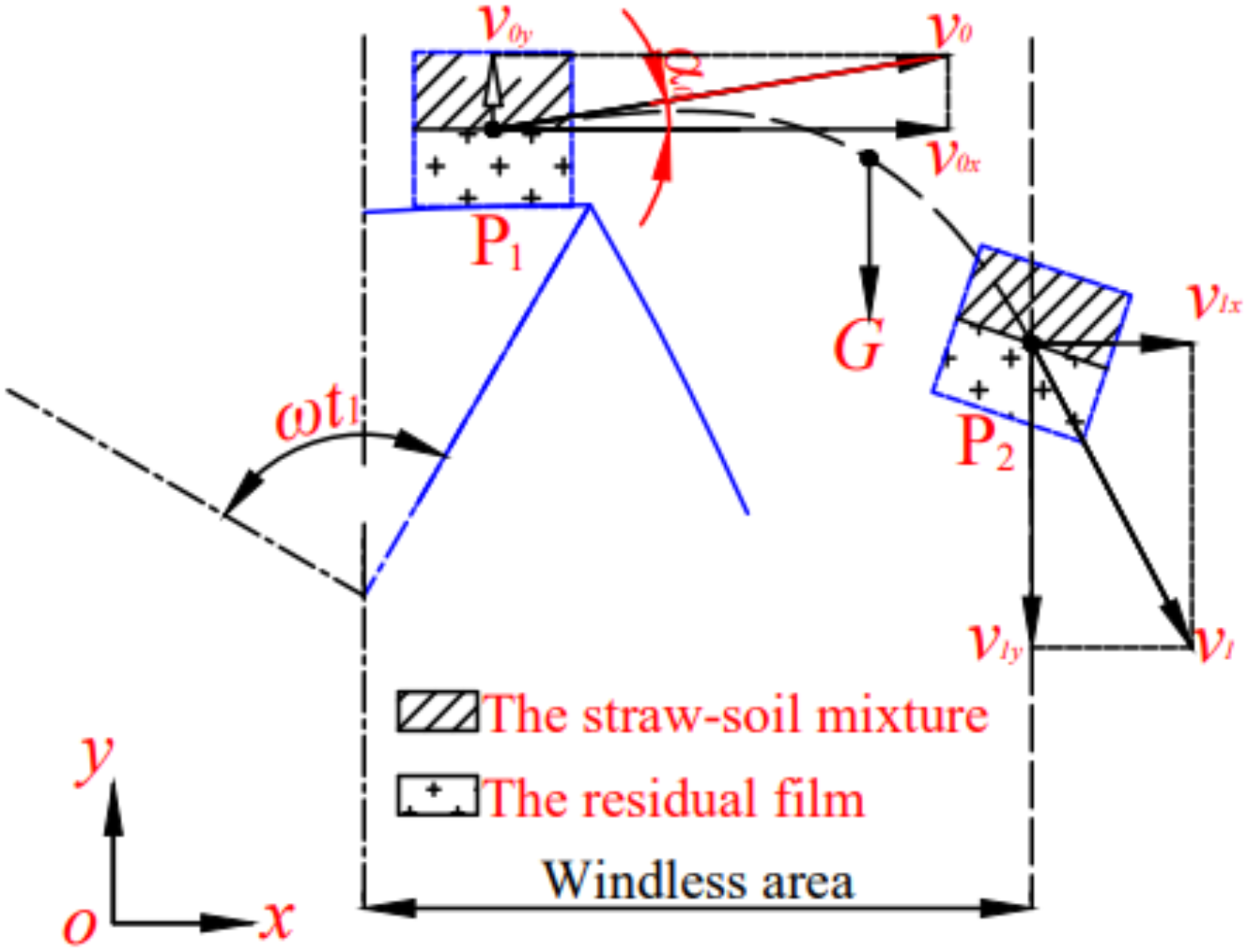

Force analysis of the throwing process in the windless area (P1 ~ P2 stage). It contains a process of oblique throwing. Note: v0 is the initial velocity of the material at point P1, with the horizontal component v0x and the vertical component v0y, m/s; α0 is the angle between the projection direction and the horizontal plane, °; v1 is the velocity after the movement of t1 time, with the horizontal component v1x and the vertical component v1y, m/s; G is the gravity of the material, N.
