Fig. 6
From: Cadmium passivation induced negative differential resistance in cove edge graphene nanoribbon device

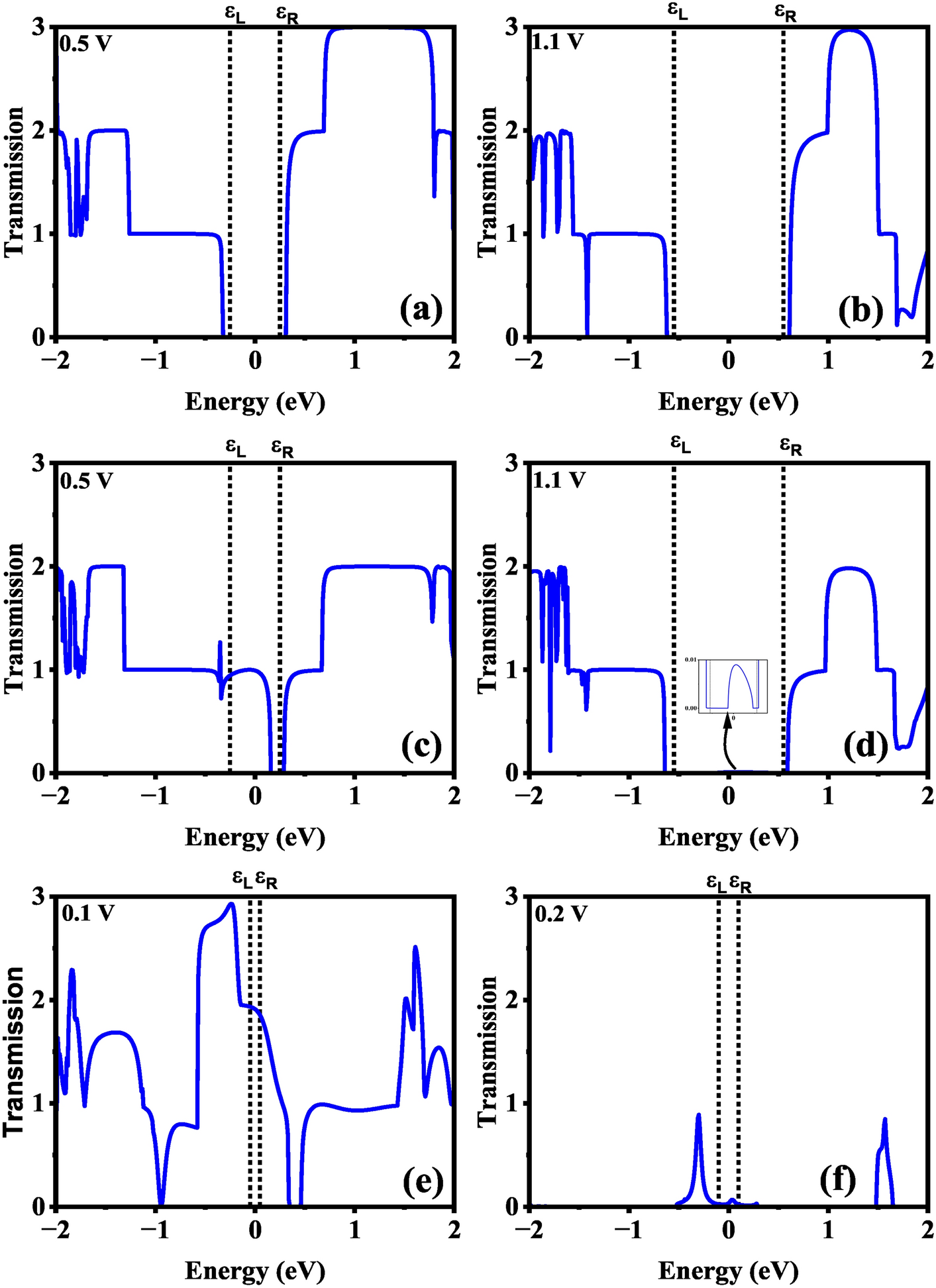

Transmission spectrum of the H-CGNR-H nanodevice at (a) \(\hbox {V}_{{Peak}}\) of 0.5 V and (b) \(\hbox {V}_{{Valley}}\) of 1.1 V, Cd-CGNR-H nanodevice at (c) \(\hbox {V}_{{Peak}}\) of 0.5 V and (d) \(\hbox {V}_{{Valley}}\) of 1.1 V, and Cd-CGNR-Cd nanodevice at (e) \(\hbox {V}_{{Peak}}\) of 0.1 V and (f) \(\hbox {V}_{{Valley}}\) of 0.2 V for \(\hbox {N}_Z\)=8 respectively.
