Fig. 1

From: The development and validation of a performance infill tracking system to investigate rotational traction mechanisms on artificial turf surfaces

Fig. 1

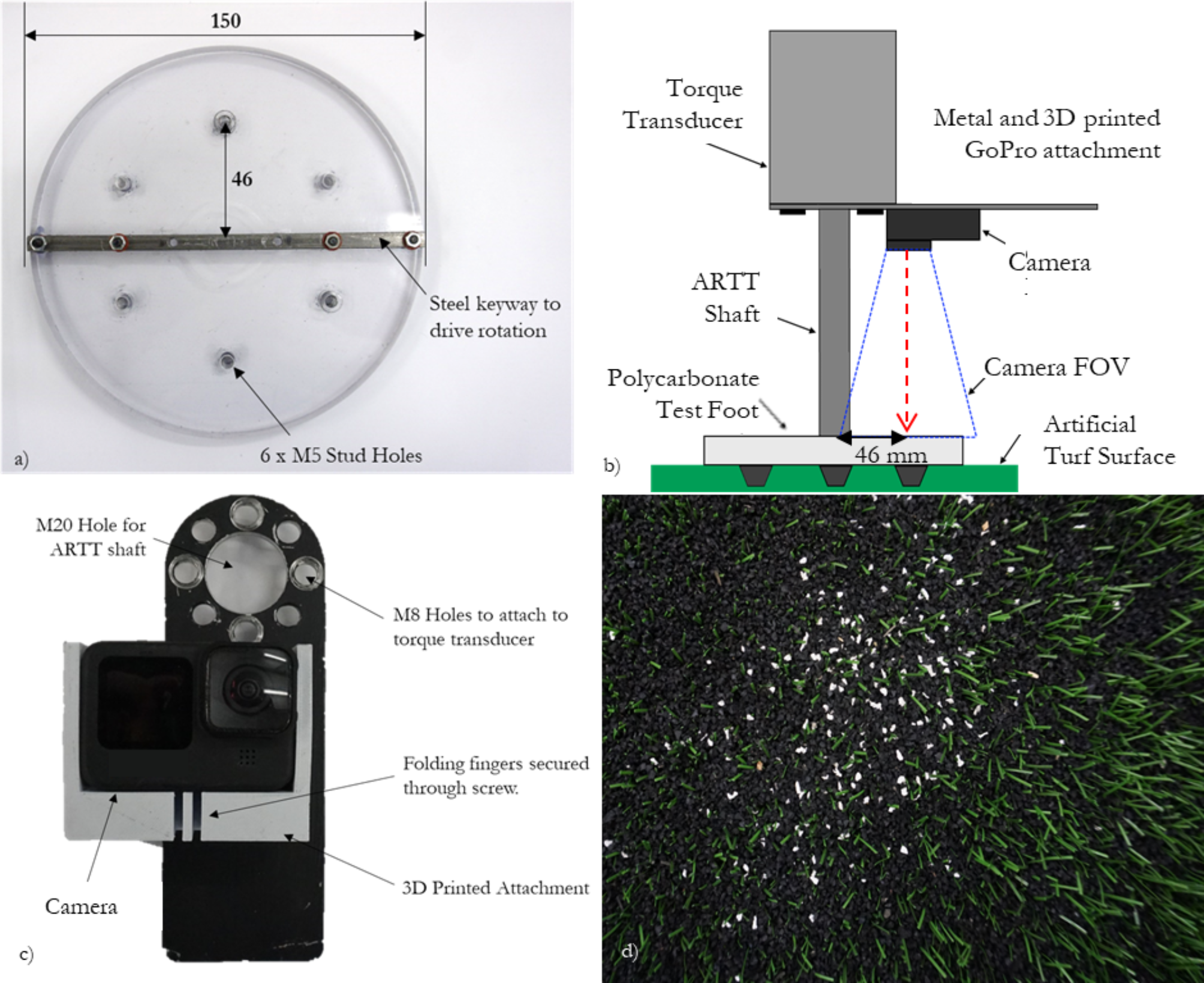

(a) The polycarbonate test foot used during rotational traction testing; (b) the camera positioning achieved above the polycarbonate test foot; (c) the camera, 3D printed holder and metal ARTT attachment used during testing; (d) white EPDM particles seeded amongst the black SBR particles and green polyethylene fibres of a typical third-generation artificial turf surface system.
