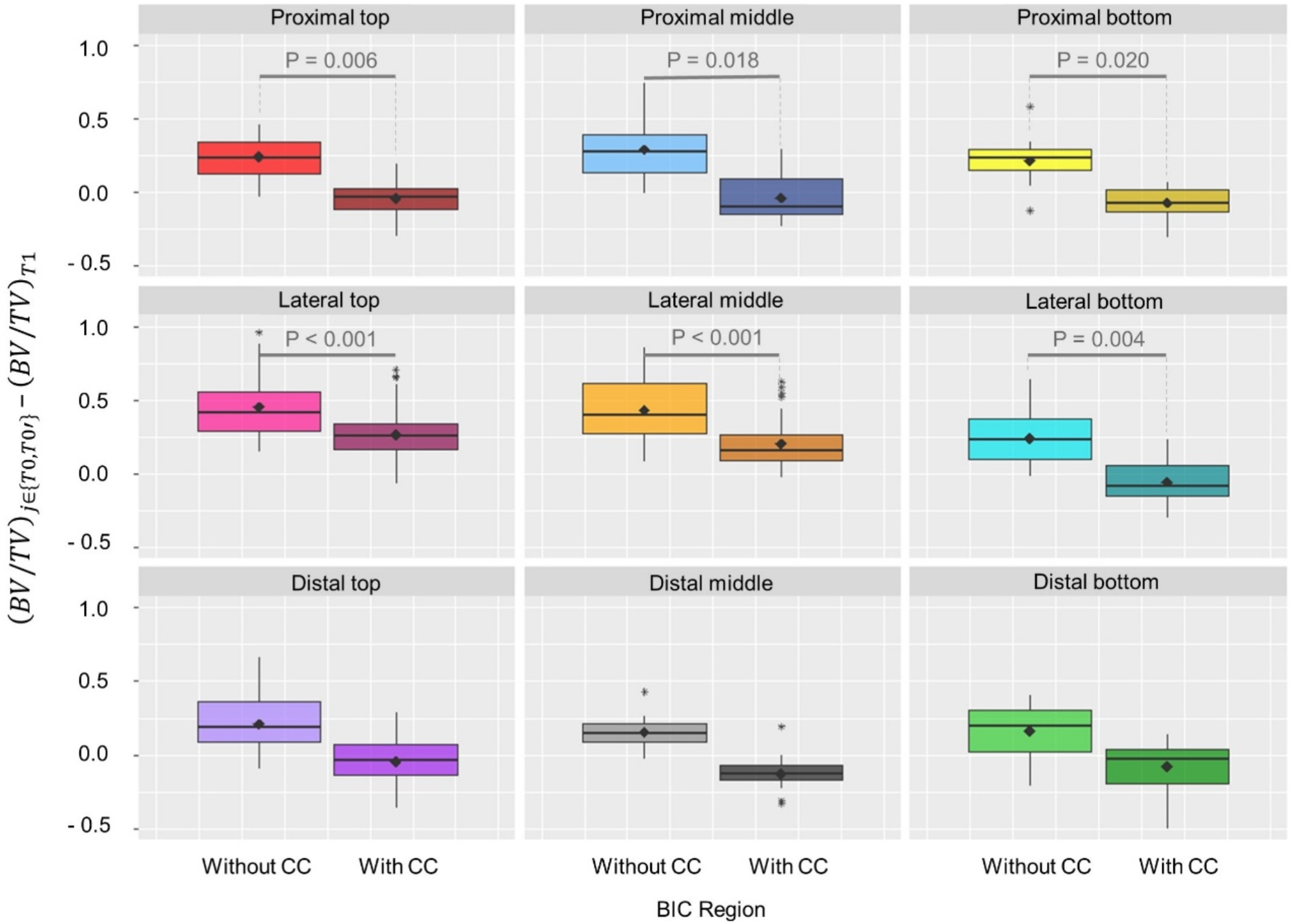

Fig. 3
Median BV/TV values + standard deviation and mean values (♦) for the nine segmented peri-implant BIC regions including only the region within 2–5 voxels from the implant. The amount of peri-implant calcified bone volume per total volume BV/TV in T0 (left boxplot) and the corrected T0’ (right boxplot) was calculated and the respective BV/TV value was subtracted by BV/TV of T1. Therefore, a value of 0.0 represents a perfect agreement of scans with and without implant. P values were reported if significant differences were found. Plots were created including the whole available data (n = 9). Lower and upper hinges correspond to first and third quartiles, whereas upper and lower whiskers extend to the largest/smallest value no further than 1.5 * IQR (inter-quartile range). Data beyond this range were defined as outliners and plotted as individual points.
