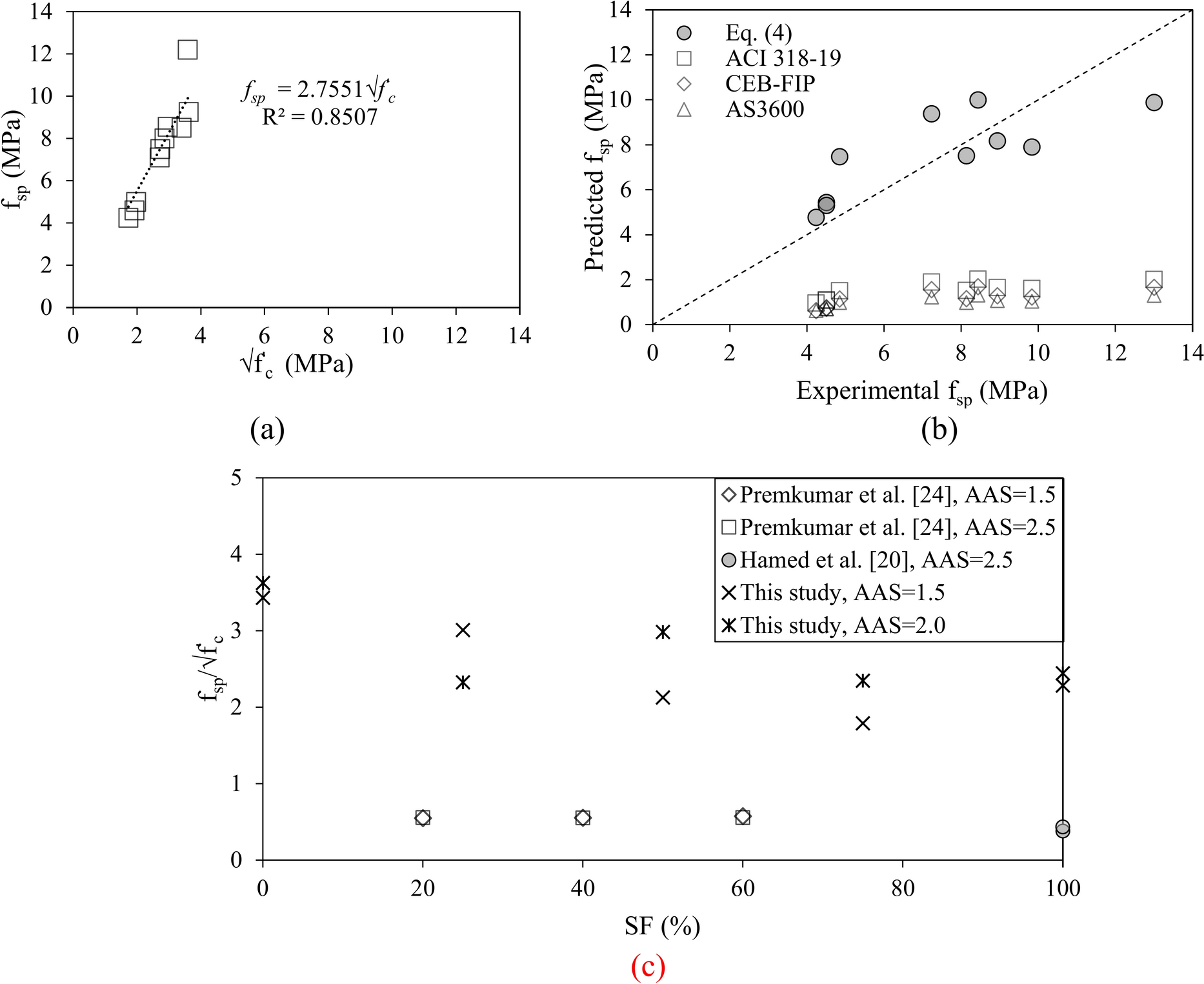

Fig. 18
From: Effect of blending GGBS and silica fume on the mechanical properties of geopolymer concrete
(a) Relationship between \({\text{f}}_{\text{sp}}\) and \({\text{f}}_{\text{c}}{\prime}\) for all geopolymer concrete mixes at 28 days, (b) Experimental versus predicted splitting tensile strength, \({\text{f}}_{\text{sp}}\), and (c) Relationship between \({f}_{sp}/\sqrt{{f}_{c}{\prime}}\) ratio with SF content % with previous studies.
