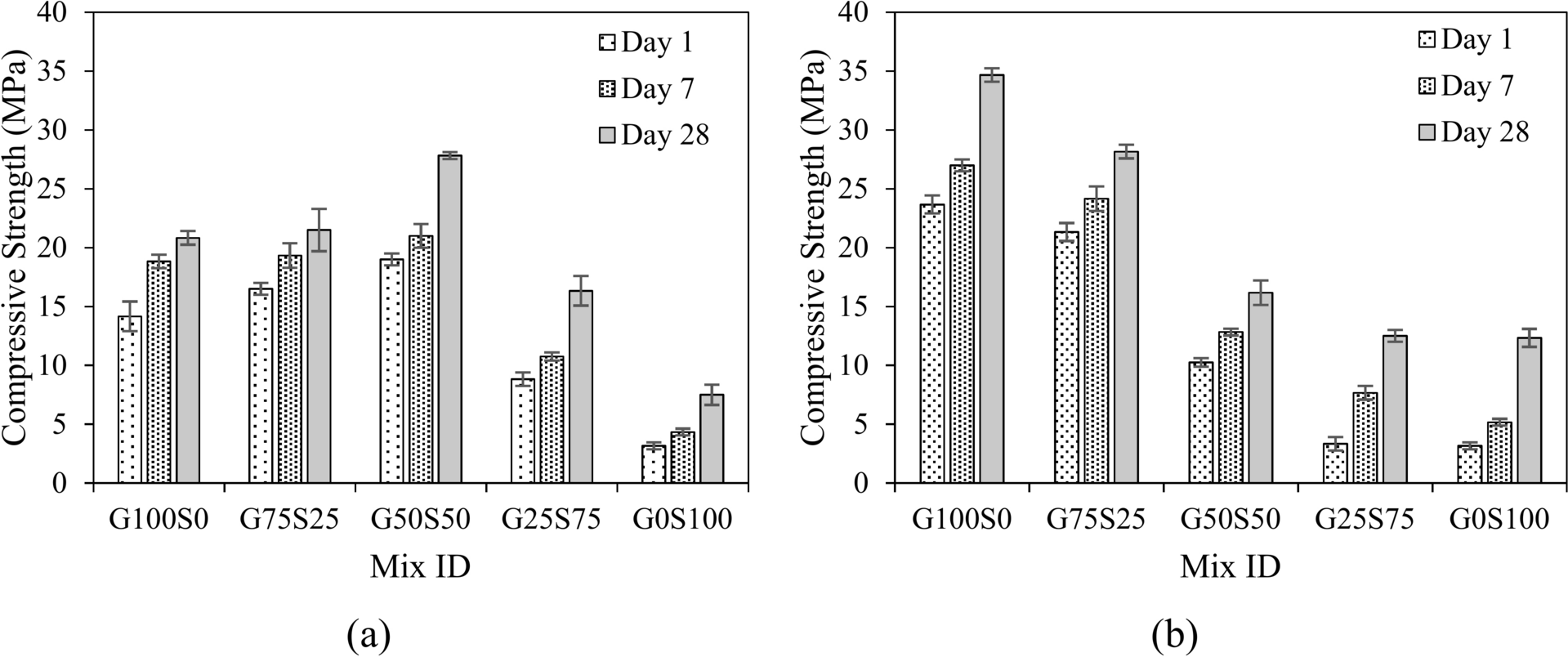

Fig. 6:
From: Effect of blending GGBS and silica fume on the mechanical properties of geopolymer concrete
1-, 7-, and 28-day compressive strengths of GGBS-based, SF-based, and GGBS/SF blended-geopolymer concrete mixes with (a) AAS ratio of 1.5 and (b) AAS ratio of 2.0.
