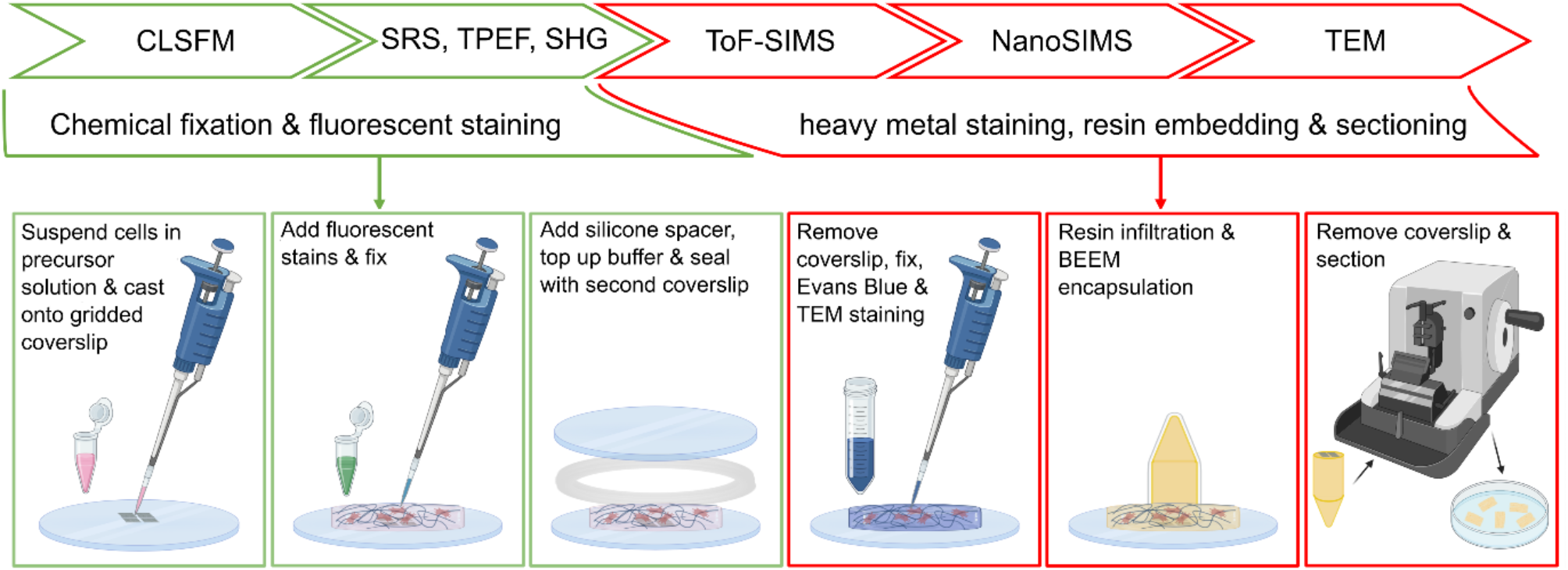

Overview of sample preparation steps. Collagen gels seeded with HDFs were cast on gridded coverslips and stained for fluorescence microscopy. A silicone spacer ring was added before the sample was encapsulated under a second coverslip. For SIMS and TEM analysis additional contrast agents were added before resin embedding and sectioning.
