Fig. 1

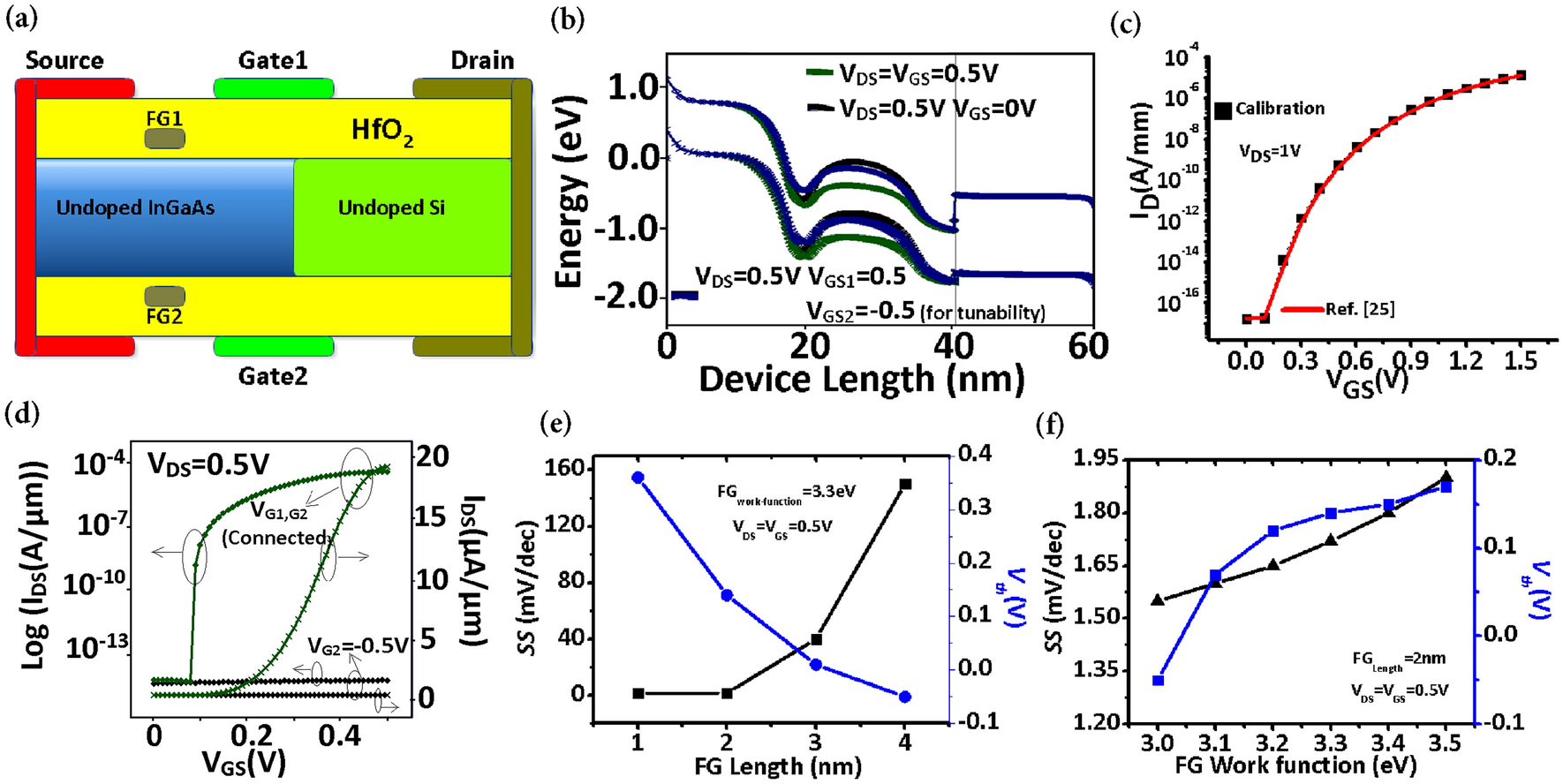

Dl-FG-ME-TFETÂ (a) proposed device structure, (b) energy band diagram (ON, OFF state and with gate2(G2) connected to \(-0.5\) V), (c) calibrated transfer characteristics, (d) proposed devices transfer characteristics, (e) impact of floating gate (FG) length, (f) impact of floating gate (FG) workfunction.
