Fig. 1
From: Plakoglobin does not participate in endothelial barrier stabilization mediated by cAMP

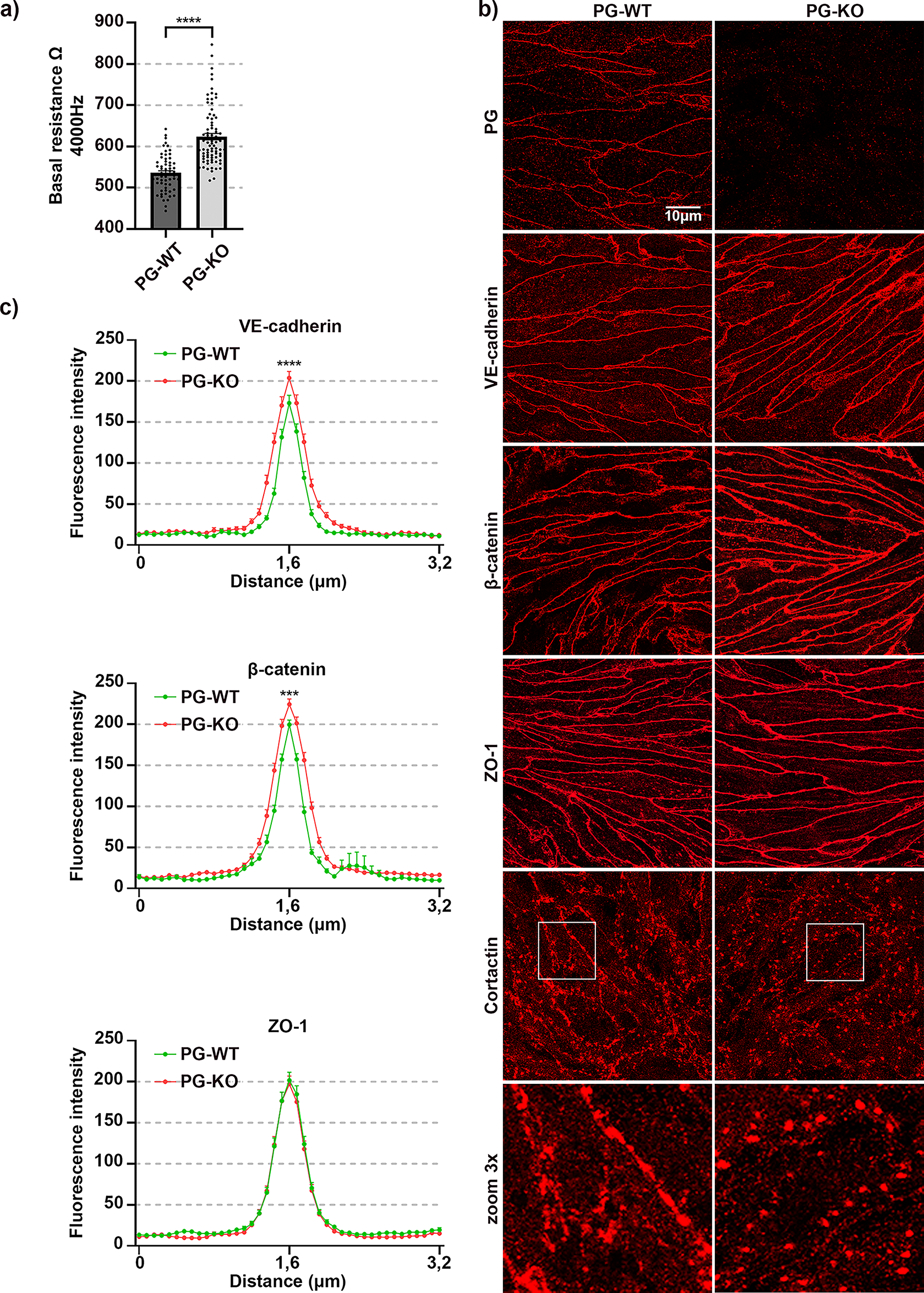

Loss of PG modulates endothelial barrier integrity. (a) Bar diagram depicting the average TEER for WT and PG-KO cell monolayers under basal conditions; N = 14 (b) Immunofluorescence analysis revealing the cellular distribution of VE-cadherin, β-catenin, ZO-1 and cortactin in untreated confluent WT and PG-KO monolayers; N = 3 (c) Bell-shaped curve disclosing the distribution of signal intensity across the cell-cell contacts for each analyzed protein; N = 3. Data are presented as mean ± SEM; the following values were considered statistically significant *** p ≤ 0,001, **** p ≤ 0,0001.
