From: The impact of binder polarity on the properties of aqueously processed positive and negative electrodes for lithium-ion batteries

Fig. 5

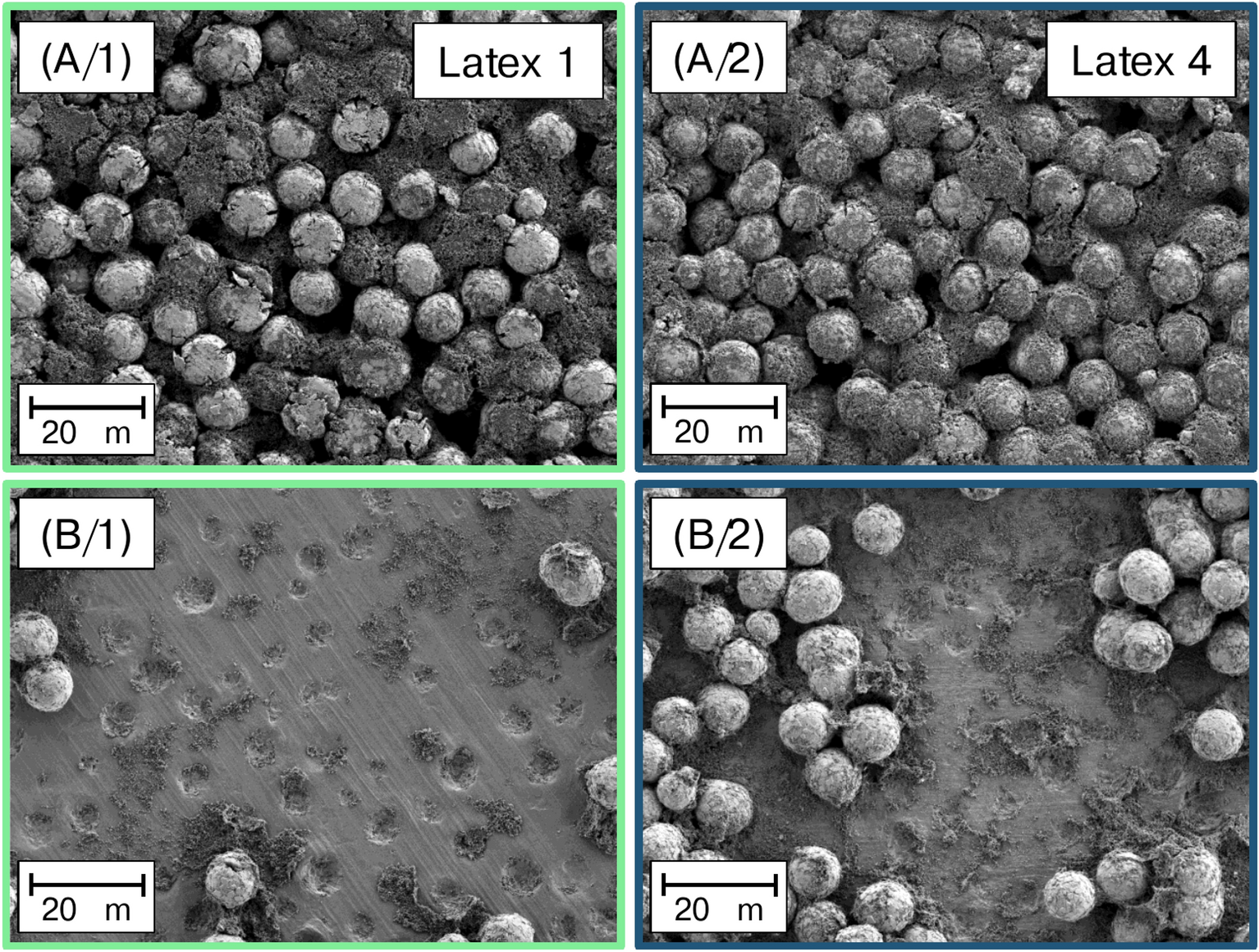

Comparison of SEM micrographs. A/1 shows the lack of interaction between dispersive Latex 1 and LNMO, resulting in pronounced CBDs while A/2 illustrates the homogeneous coverage of LNMO by CBDs when applying polar Latex 4. B/1 and B/2 show a blank aluminum current collector and an aluminum current collector with binder accumulated at its surface depending on the polarity of the PVDF latex, respectively.
