Fig. 9

From: Optimization of ultra-wideband metamaterial MXene-based polarization-insensitive solar absorber using machine learning for solar heater application

Fig. 9

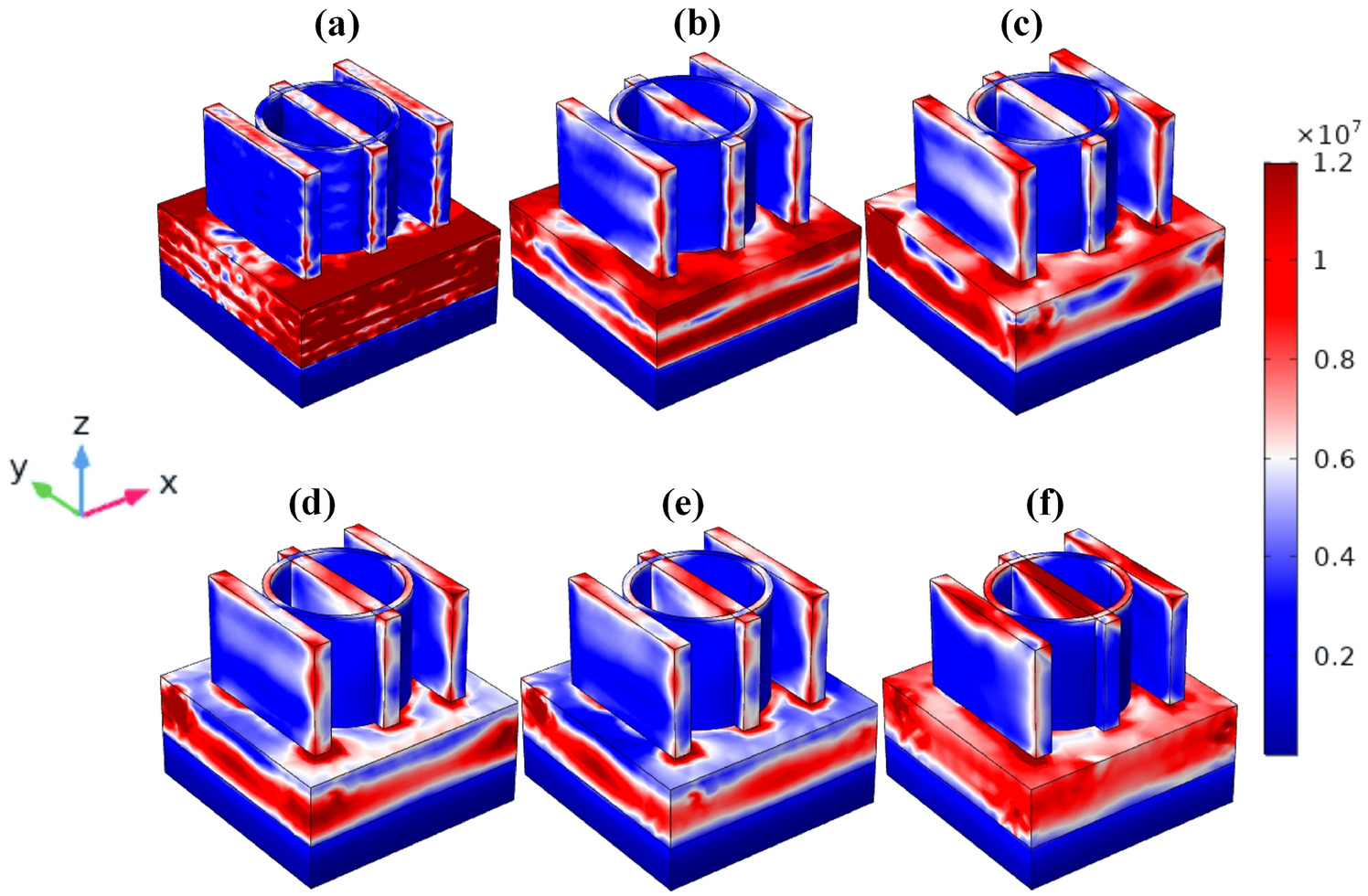

MMRSA plot intensity of Electric Field (× 107 V/m), (a) MMRSA three-dimensional electric field picture for wavelength λ1 = 440 nm, (b) MMRSA three-dimensional electric field picture for wavelength λ2 = 1150 nm, (c) MMRSA three-dimensional electric field picture for wavelength λ3 = 1710 nm, (d) MMRSA three-dimensional electric field picture for wavelength λ4 = 1840 nm, (e) MMRSA three-dimensional electric field picture for wavelength λ5 = 1930 nm, (f) MMRSA three-dimensional electric field picture for wavelength of λ6 = 2880 nm.
