From: Triple synergistic enhancement of breast cancer treatment via chemotherapy, chemodynamic therapy, and tumor starvation therapy driven by lipid-COF nanoparticles

Fig. 2

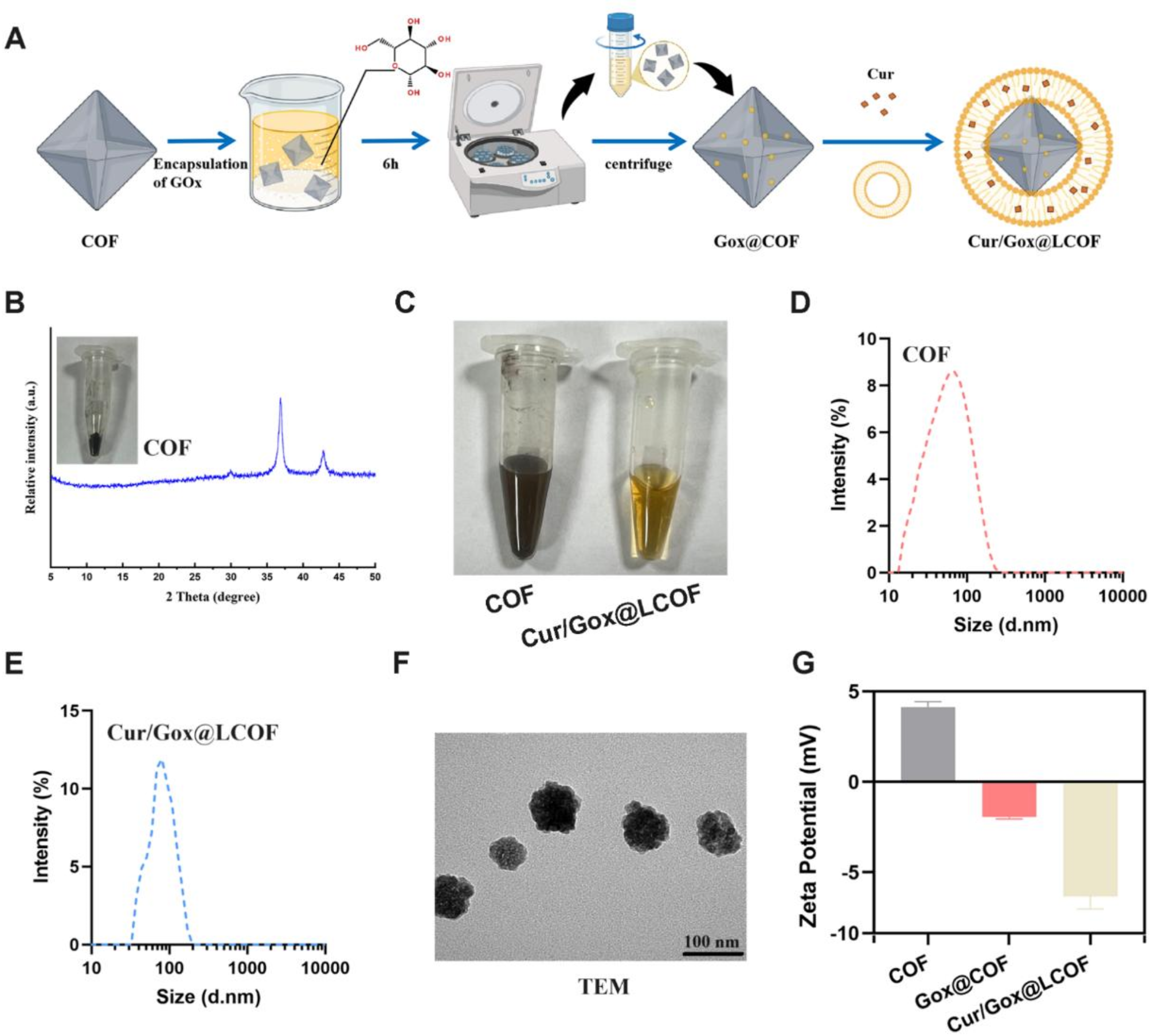

(A) Schematic illustration of the design and synthesis of Cur/Gox@LCOF. (B) XRD pattern of COF. (C) Optical images of Gox@LCOF. (D) Hydrodynamic particle size distribution of COF. (E) Hydrodynamic particle size distribution of Cur/Gox@LCOF. (F) TEM morphology of Cur/Gox@LCOF. (G) Zeta potential measure-ment of Cur/Gox@LCOF.
