Fig. 11
From: Study on hangfire failure mechanism in firearm firing-ignition systems

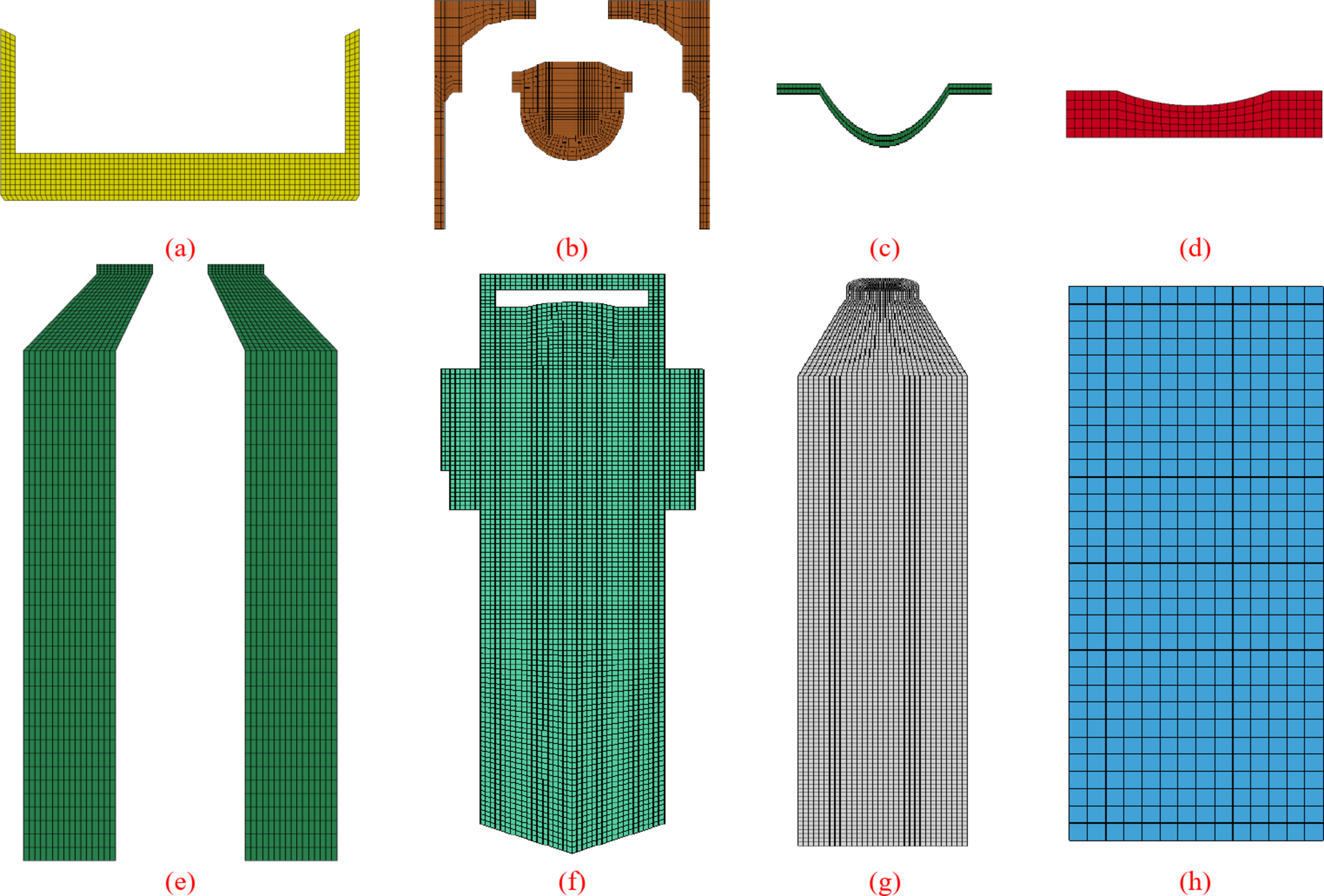

Finite element model of each component. (a) Primer cup, (b) Cartridge case, (c) Paper disk, (d) Primer mixture, (e) Bolt, (f) Air domain, (g) Firing pin, (h) Drop hammer
