Fig. 2

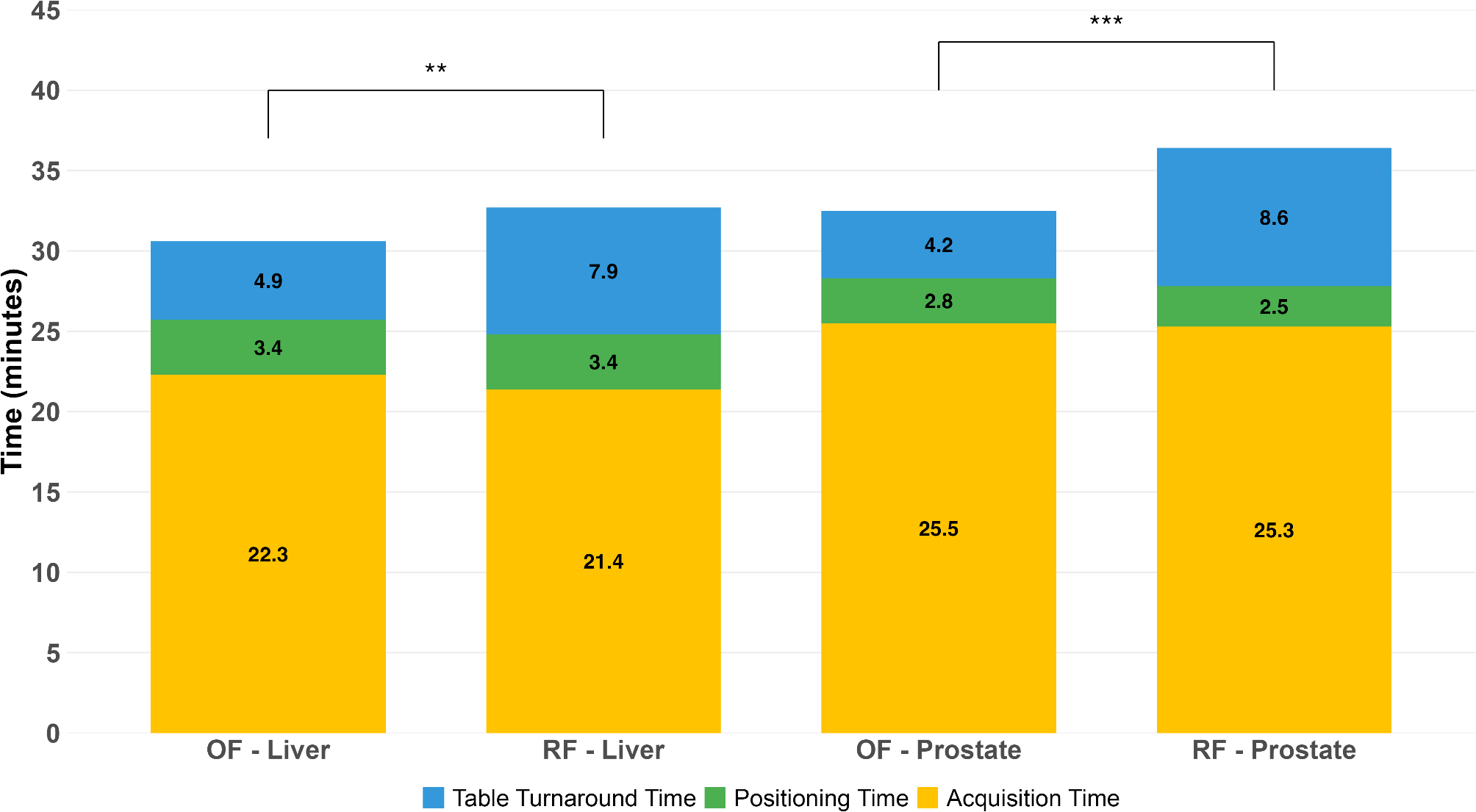

Comparison of the total process cycle for liver and prostate exams at the optimized (OF) and reference facilities (RF) from March 2022 to April 2024. The graph highlights the shorter table turnaround times across all exam types at OF, while other metrics remain comparable between facilities. Asterisks indicate statistically significant differences in the total process cycle between OF and RF (*** = p < 0.001, ** = p < 0.01).
