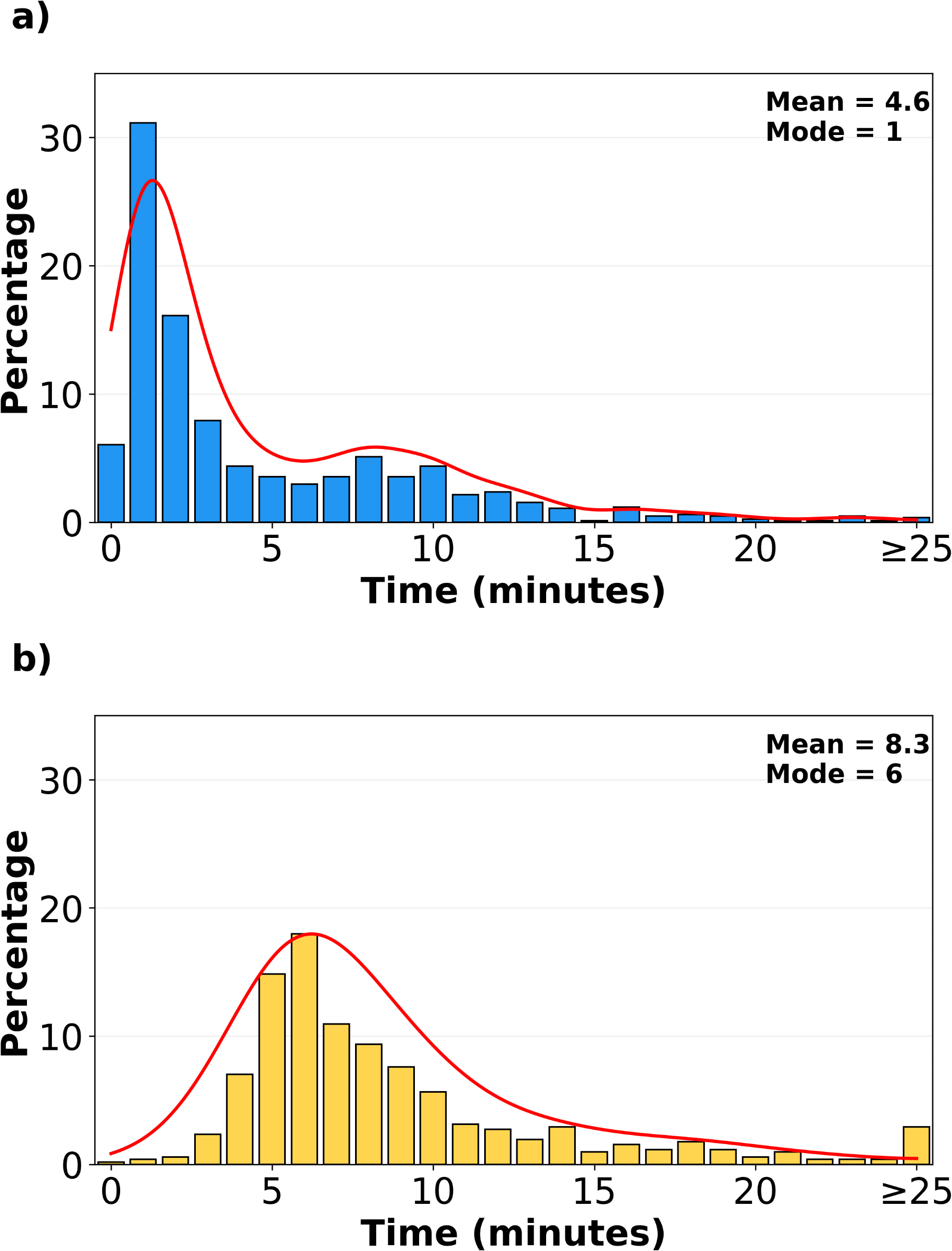

Distribution of table turnaround time (TTT) for the optimized (OF) and reference facility (RF). OF’s histogram reveals a strong right skew, with a pronounced peak at 1 min (mode), and the majority of the patients (61.3%) swapped within ≤ 3 min. In contrast RF´s histogram exhibits a more symmetrical distribution compared to the OF, with a central peak at 6 min (mode) and the majority of patients (73.4%) swapped within 4–10 min. The red line shows the kernel density estimation of the distribution.
