Fig. 1

From: A vertical-horizontal approach to examine social inequalities in early onset type 2 diabetes in the German workforce through occupational sector, education and income

Fig. 1

Source of data: AOKN.

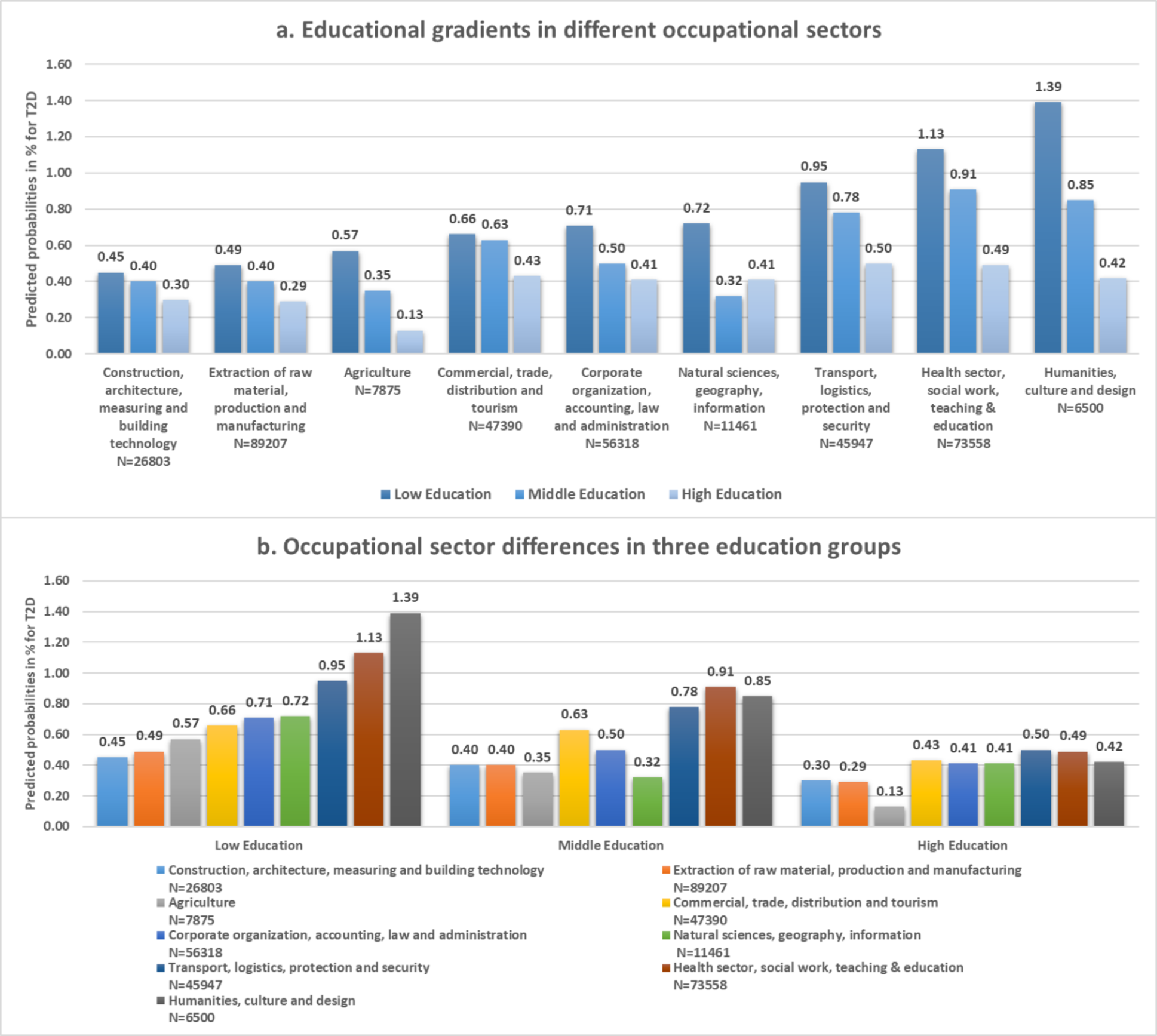

Predicted probabilities for early onset T2D in nine occupational sectors stratified by school educational level, displayed as (a) educational gradients in different occupational sectors, and (b) occupational sector differences in the three education groups. All models adjusted for age, gender, insurance duration and the interaction effect of gender and education.
