Fig. 3

From: An ACE2-Fc decoy produced in glycoengineered plants neutralizes ancestral and newly emerging SARS-CoV-2 variants and demonstrates therapeutic efficacy in hamsters

Fig. 3

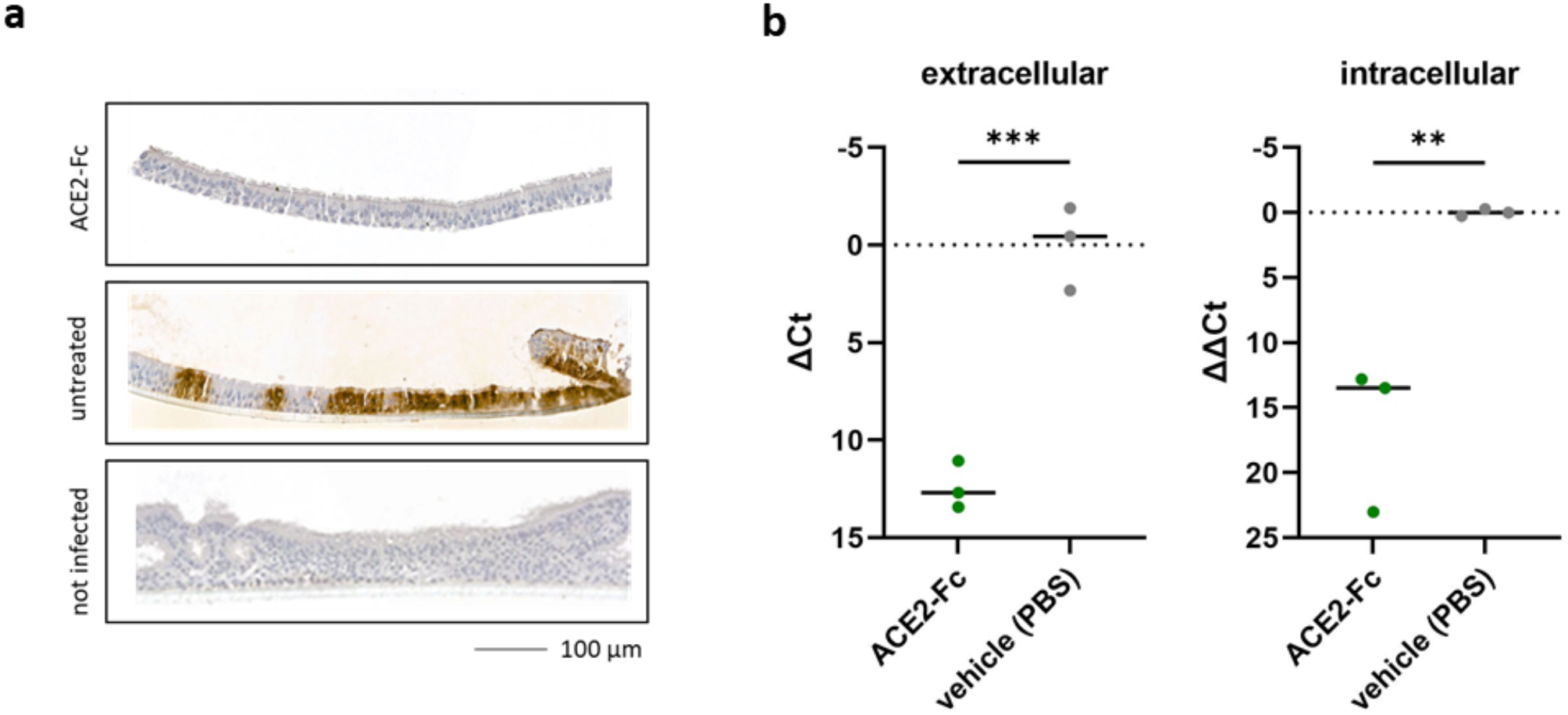

Wild-type ACE2-Fc prevents SARS-CoV-2 (de21) infection of primary air liquid interface cultures as shown by (a) immunohistochemical detection of the viral nucleocapsid protein and (b) detection of viral RNA by RT-qPCR. Extracellular SARS-CoV-2 N gene expression is presented as ∆Ct (Ct N(infected, ACE2-Fc) – Ct N(infected, untreated)). Intracellular SARS-CoV-2 N gene is expressed as ∆∆Ct ({Ct N(infected, ACE2-Fc) – Ct HPRT1(infected, ACE2-Fc)} – {Ct N(infected, untreated) – Ct HPRT1(infected, untreated)}). Dots represent independent cultures and bars the median values. P values were calculated by ANOVA and corrected for multiple comparison by Bonferroni. P values < 0.05 were considered significant (*P < 0.05; **P < 0.01; ***P < 0.001; ****P < 0.0001).
