Fig. 6
From: Evolution of airblast induced by roof collapse based on LBM-DEM

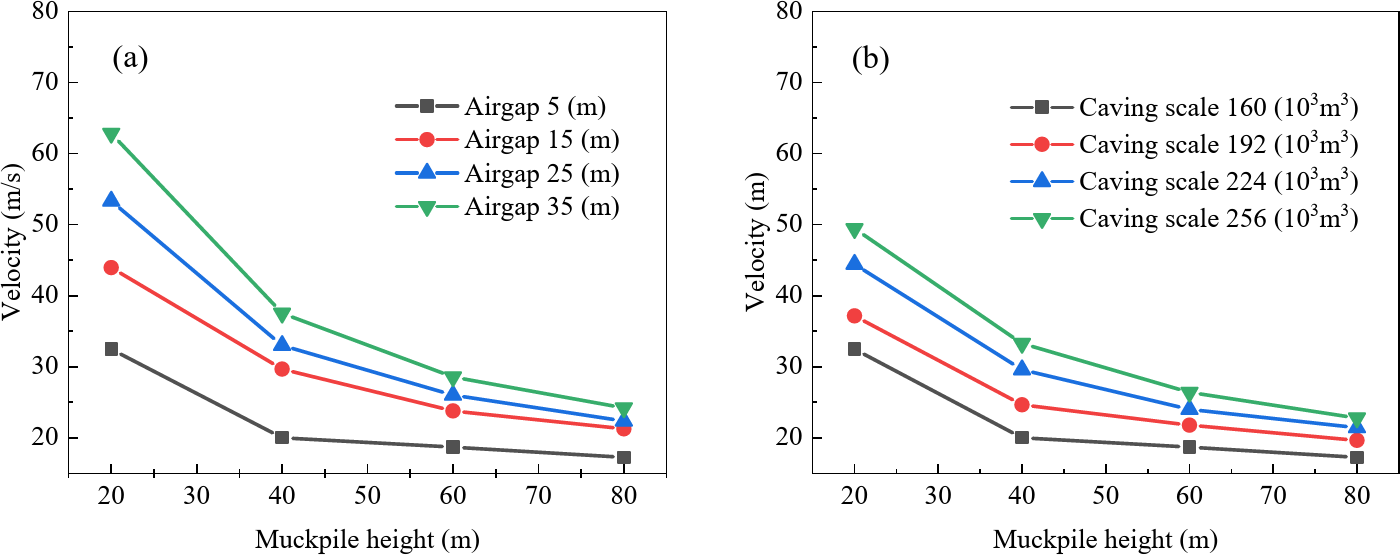

Relationship between muckpile height and maximum air velocity; (a) Effect of air gap on the relationship between muckpile height and maximum air velocity; (b) Effect of caving scale on the relationship between muckpile height and maximum air velocity.
