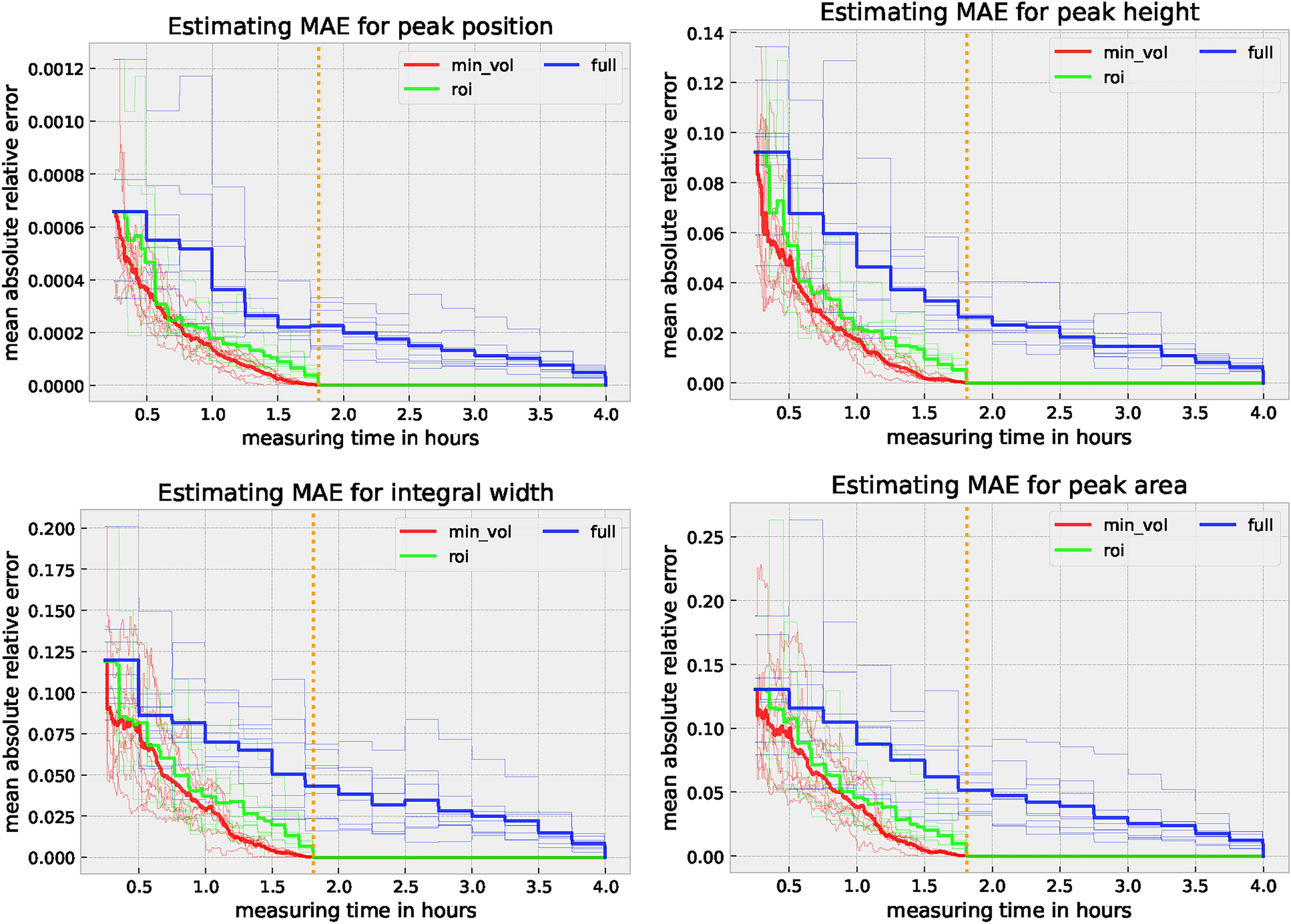

Figure 6
From: Data selection strategies for minimizing measurement time in materials characterization
Relative error averaged over all estimated peaks (12 peaks in total) for every dataset (plus mean in bold) with respect to the measuring time. 1.81 hours (orange dotted line) of measurement time would be enough to reach an MAE of 0.0 according to the selection strategies roi and min_vol.
