From: Rapid formulation of a genetically diverse phage cocktail targeting uropathogenic Escherichia coli infections using the UTI89 model

Fig. 3

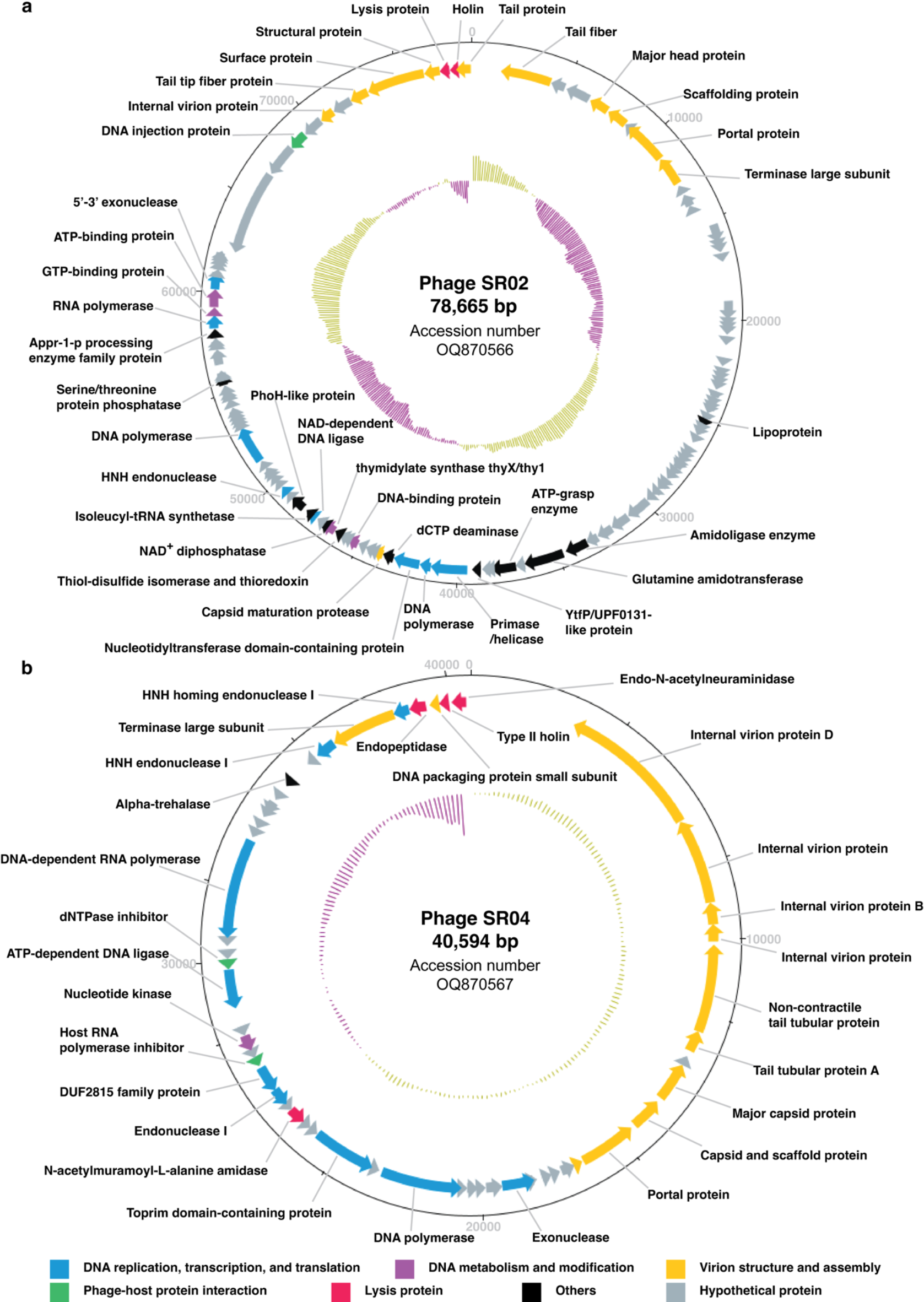

Schematic genome maps of phages SR02 (a) and SR04 (b). The open reading frames (ORFs) are indicated with arrows showing the ORF direction and the functional annotated genes are categorized into 6 different groups; DNA replication, transcription, and translation (blue), DNA metabolism and modification (purple), virion structure and assembly (yellow), phage-host protein interaction (green), lysis protein (red), and others (black). Apart from those functionally annotated genes, the rest are classified as hypothetical proteins, indicated by grey color. The innermost circles represent GC content across the genome (yellow; above average, and purple; below average). Related to Supplementary Tables S3 and S4.
