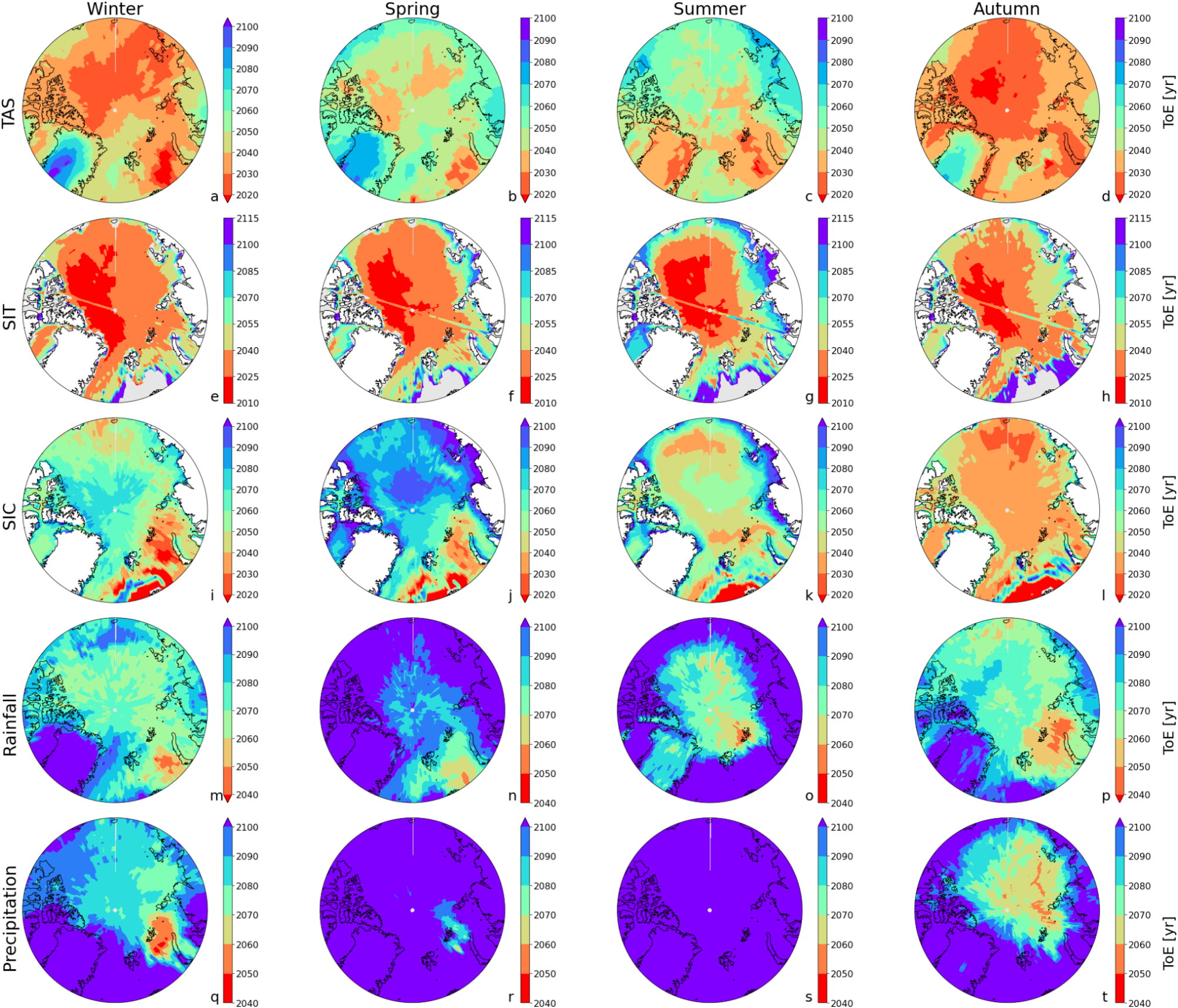

Fig. 3
From: The time of emergence of Arctic warming, wetting and sea ice melting
Geographical distribution of the seasonal Time of Emergence (ToE) for surface temperature (first row), sea ice thickness (second row), sea ice cover (third row), rainfall (fourth row) and total precipitation (fifth row). The grid cell values are the median ToE of the CMIP6 models calculated using the per grid point method (comBPnn), for winter (DJF, first column), spring (MAM, second column), summer (JJA, third column), autumn (SON, fourth column). For each model, grid points failing to produce a ToE-value during the 21st century (≤ 2100) are assigned a ToE-value of 2101. Purple colour depicts the grid cells where the median of the CMIP6 models is 2101, while white colour depicts land without SIT and SIC. Note the different colour scales per variable.
